PP Pleated Filter Cartridge
评分为 4.3（共 5）

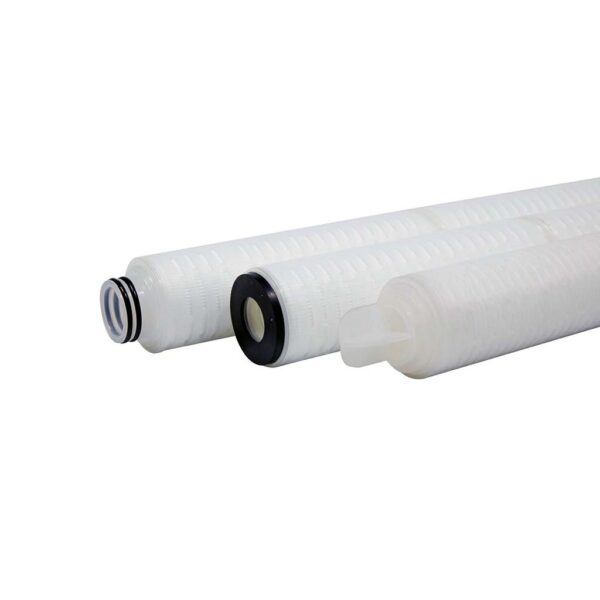

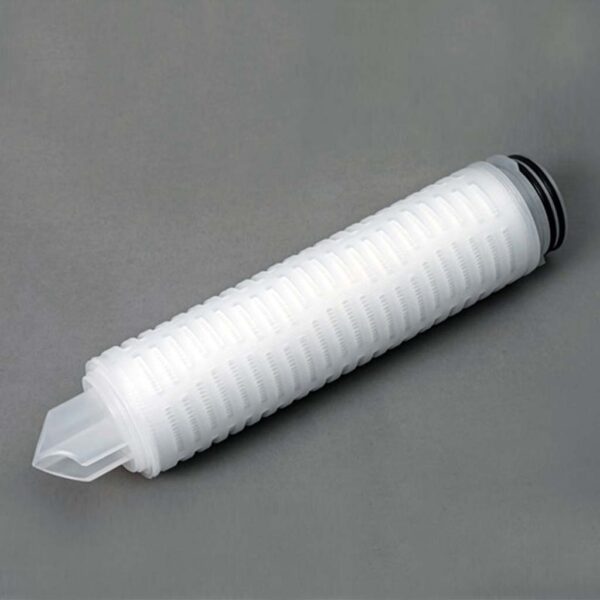

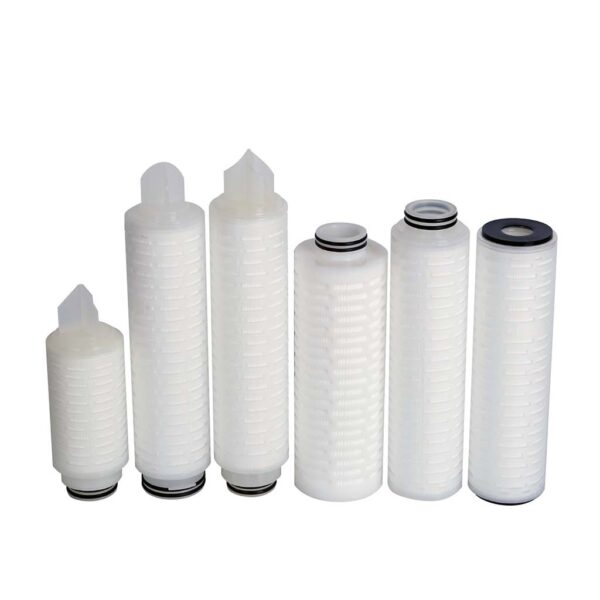

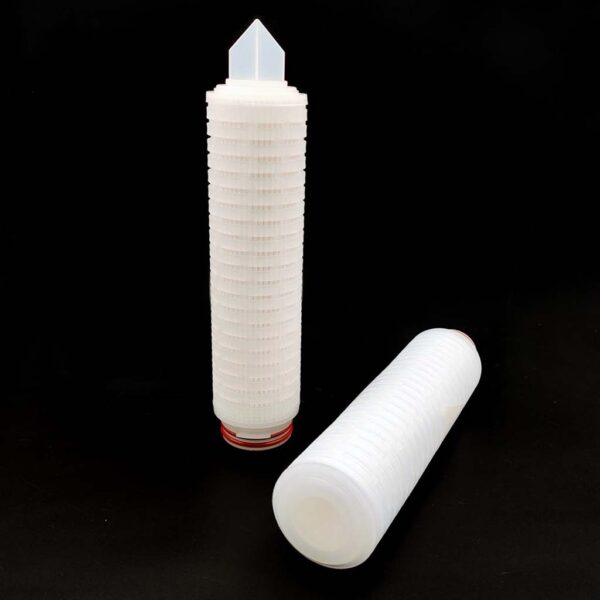

PP Pleated Filter Cartridge
价格范围：$2.00 至 $7.00
PP Pleated Filter Cartridge is designed for high-efficiency liquid filtration in industrial applications. Manufactured with high-quality polypropylene membrane and support layers, it provides excellent filtration performance, large filtration area, and high dirt holding capacity.
| Filter Media | PP |
|---|---|
| Micron | 1um, 5um, 10um, 20um, 50um |
| length | 10 inch, 20 inch, 30 inch, 40 inch, 60 inch, 70 inch |
| End Cap | DOE, 222/Fin, 222/Flat, 226/Fin, 226/Flat |
A PP Pleated Filter Cartridge is a high-performance filtration element designed for efficient particle removal in industrial liquid filtration systems. Manufactured with high-quality polypropylene membrane and support layers, PP pleated cartridges provide excellent filtration efficiency, large filtration surface area, and strong chemical compatibility.
Compared with traditional depth filter cartridges, the pleated design significantly increases the filtration area, allowing higher flow rates and longer service life while maintaining low pressure drop.
PP pleated filter cartridges are widely used in water treatment, food and beverage processing, pharmaceutical production, chemical filtration, and electronics manufacturing.
- Weight : 0.25 kg
- Dimensions : 10 × 15 × 15 cm
- Size : 100ml, 150ml, 200ml
- Brand Bioderma
Key Features
✔ Large filtration area due to pleated structure
✔ High dirt holding capacity
✔ Low pressure drop and high flow rate
✔ Excellent chemical compatibility
✔ High filtration efficiency and stable performance
✔ Thermally bonded construction without adhesives
✔ Long service life and reduced replacement frequency
✔ Multiple micron ratings available
✔ Food Grade FDA Approved – Suitable for contact with consumables, fully FDA approved.
Product Specifications
| Parameter | Description |
|---|---|
| Filter Material | Polypropylene (PP) membrane |
| Support Layer | Polypropylene |
| Core / Cage | Polypropylene |
| End Cap | Polypropylene |
| Seal Material | Silicone, EPDM, NBR, Viton |
| Filtration Rating | 0.1 μm – 50 μm |
| Length | 10″, 20″, 30″, 40″ |
| Maximum Operating Temperature | 80°C |
| Maximum Differential Pressure | 4.2 bar |
| Recommended Change Out Pressure | 2.4 bar |
Available Micron Ratings
PP pleated filter cartridges are available in various filtration ratings to meet different filtration requirements.
Typical filtration accuracy includes:
0.1 μm
0.2 μm
0.45 μm
1 μm
3 μm
5 μm
10 μm
20 μm
50 μm
These options allow customers to choose the most suitable filtration accuracy for their specific application.
Applications
PP pleated filter cartridges are widely used in different industrial filtration systems.
Water Treatment
Used for municipal water purification, industrial water filtration, and reverse osmosis pre-filtration systems.
Food and Beverage
Applied in filtration of beverages, bottled water, wine, juice, and dairy processing.
Pharmaceutical Industry
Used for pharmaceutical liquid filtration, biological solutions, and process fluid filtration.
Chemical Processing
Suitable for filtration of chemicals, solvents, and process fluids requiring reliable particle removal.
Electronics Industry
Used in ultrapure water systems and process fluid filtration in semiconductor manufacturing.
Advantages of PP Pleated Filter Cartridge
Larger Filtration Area
The pleated structure provides a significantly larger filtration surface compared with traditional depth filters, improving filtration capacity.
Higher Flow Rate
The increased filtration area allows higher flow rates while maintaining low pressure drop.
Longer Service Life
High dirt holding capacity extends the replacement cycle and reduces operational costs.
Strong Chemical Compatibility
Polypropylene material offers excellent resistance to a wide range of chemicals and solvents.
Structural Design
A typical PP pleated filter cartridge consists of multiple layers designed to ensure optimal filtration performance.
The structure usually includes:
Polypropylene membrane layer
Support layer
Inner core
Outer cage
End caps
Sealing gasket
This multi-layer design ensures mechanical strength and stable filtration efficiency.
Customization Options
We provide customized filter cartridge solutions according to customer requirements.
Customization options include:
Filtration accuracy
Cartridge length
End cap type
Seal material
Adapter type
Membrane structure
OEM and ODM services are available.
Quality Control
Each filter cartridge undergoes strict quality inspection before delivery.
Quality testing includes:
Raw material inspection
Bubble point testing
Flow rate testing
Pressure resistance testing
Integrity testing
These procedures ensure consistent product quality and reliable filtration performance.
Why Choose Our PP Pleated Filter Cartridges
Professional filtration manufacturer
Stable filtration performance
Advanced production technology
Strict quality control system
Competitive factory price
Fast delivery and global export experience
Our goal is to provide reliable filtration solutions that help customers improve filtration efficiency and reduce operating costs.
FAQ – PP Pleated Filter Cartridge
What is a PP pleated filter cartridge used for?
PP pleated filter cartridges are used for removing particles, sediments, and contaminants from liquids in industrial filtration systems.
What is the advantage of pleated filter cartridges?
Pleated cartridges provide a larger filtration area, higher flow rate, and longer service life compared with traditional depth filters.
How long does a PP pleated filter cartridge last?
Service life depends on the filtration conditions, contaminant level, and operating pressure, but typically lasts longer than standard depth filters.
What micron rating should I choose?
The micron rating depends on the filtration requirement of the system. Pre-filtration usually uses 5–10 μm cartridges, while fine filtration may require 0.2–1 μm cartridges.
Can PP filter cartridges be used in chemical filtration?
Yes. Polypropylene material has excellent chemical compatibility and is widely used for many chemical filtration applications.
