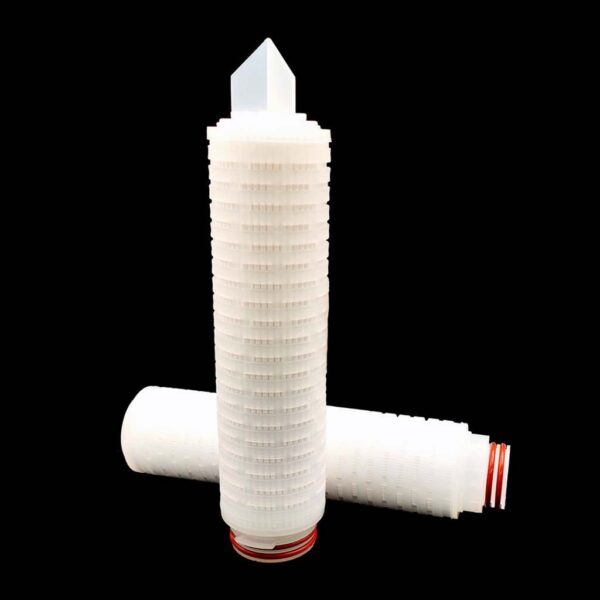

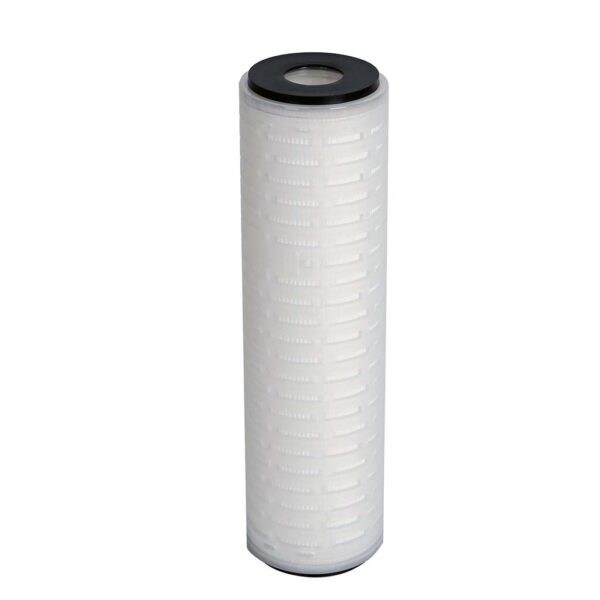

Nominal Depth Pleated Filter Cartridges

3️⃣ Key Features

Large Dirt Holding Capacity

Depth filtration structure allows contaminants to be captured throughout the filter media.

High Flow Rate

Pleated structure increases filtration area and enables higher flow rates.

Low Pressure Drop

Optimized pleat design reduces pressure loss in filtration systems.

Long Service Life

High contaminant holding capacity reduces replacement frequency.

Wide Chemical Compatibility

Polypropylene construction provides excellent resistance to many chemicals.

Cost-Effective Filtration

Nominal filtration design provides efficient filtration at a competitive cost.

4️⃣ Technical Specifications

5️⃣ Applications of Nominal Depth Pleated Filter Cartridges

6️⃣ Product Structure & Materials

Nominal depth pleated filter cartridges are constructed using multiple filtration components to ensure stable performance and structural integrity.

This fully polypropylene construction ensures excellent chemical compatibility and high mechanical strength.

7️⃣ Advantages of Nominal Depth Pleated Filter Cartridges

Combination of Depth and Pleated Filtration

Nominal depth pleated filters combine the advantages of:

• Depth filter structure

• Pleated surface filtration

This combination allows efficient particle capture and increased filtration area.

Higher Dirt Holding Capacity

Compared with membrane pleated filters, depth media can trap particles throughout the filter thickness.

Extended Filter Life

Large filtration area and depth structure significantly increase filter lifespan.

Reduced Operating Cost

Longer service life reduces filter replacement frequency and operating costs.

Ideal for Pre-Filtration

Nominal depth pleated filters are widely used as pre-filters before membrane filtration systems, helping to extend the life of expensive final filters.

8️⃣ FAQ – Nominal Depth Pleated Filter Cartridges

What is a nominal depth pleated filter cartridge?

A nominal depth pleated filter cartridge uses depth filtration media combined with a pleated structure to provide high dirt holding capacity and efficient particle removal.

What is the difference between nominal and absolute filtration?

Nominal filtration removes a high percentage of particles at a given micron rating, while absolute filtration removes nearly all particles of that size.

What are nominal depth pleated filters used for?

They are commonly used for pre-filtration, industrial water filtration, chemical filtration, and process liquid filtration.

What micron ratings are available?

Typical micron ratings range from 0.5 μm to 50 μm.

How long do nominal depth pleated filters last?

Service life depends on operating conditions and contaminant load, but they typically last longer than standard depth filter cartridges.
