Pleated Cartridge Filter

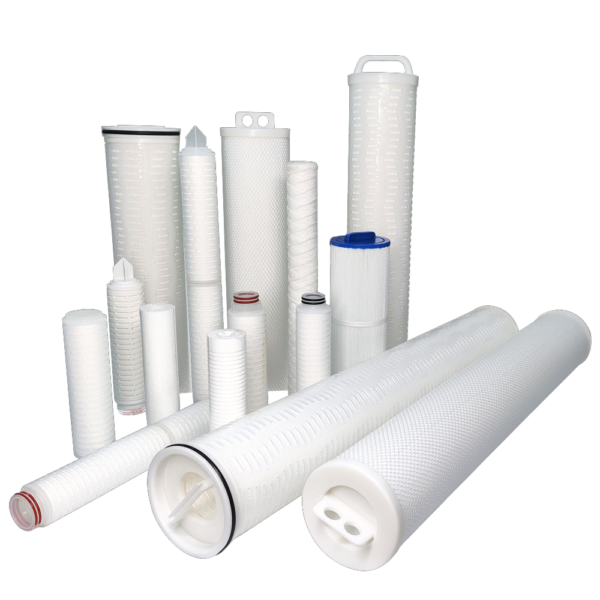

Pleated filter cartridges manufactuer

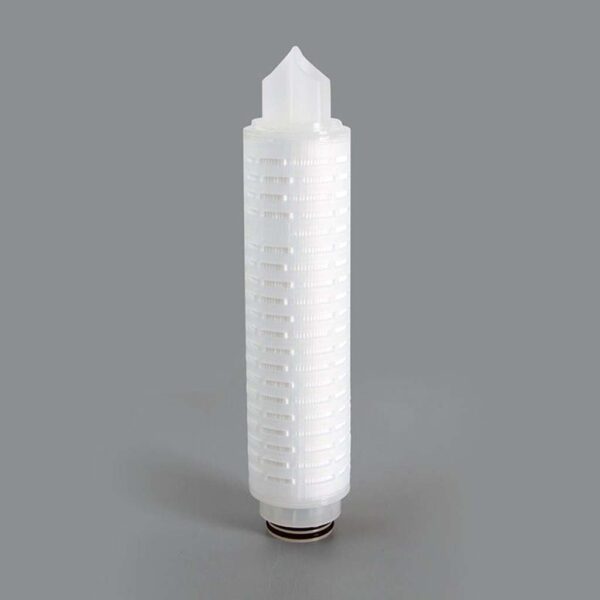

pleated cartridge filter

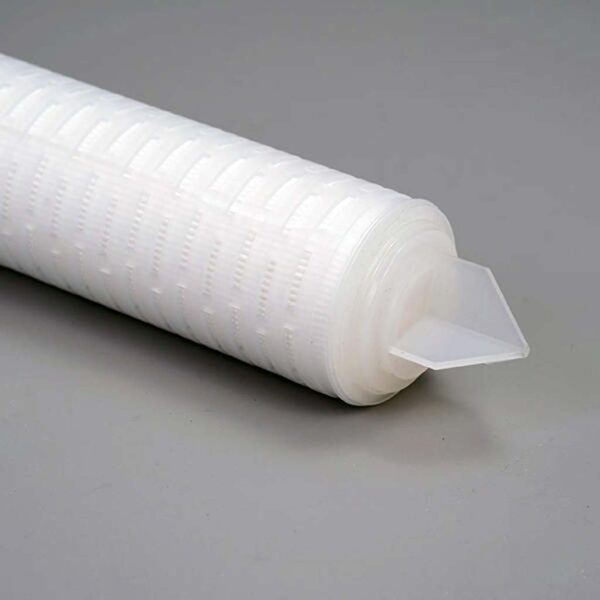

pleated cartridge filter

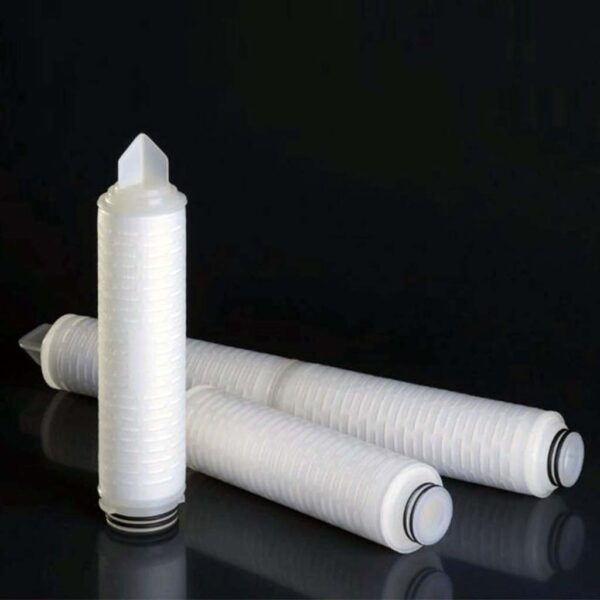

5 Key Factors to Consider When Buying PP Pleated Filter Cartridges
评分为 4.3（共 5）

Pleated Cartridge Filter

价格范围：$2.00 至 $7.00

Pleated cartridge filters are high-efficiency filtration elements designed to remove fine particles, sediments, and contaminants from liquids and gases. Compared with traditional depth filters, pleated filters provide a much larger filtration area, resulting in higher flow rates, lower pressure drop, and longer service life.

Filter Media

PP, PES, PTFE, PVDF, Nylon 66, Glass Fiber

Micron

0.1um, 0.22um, 0.45um, 1um, 5um, 10um, 20um

length

10 inch, 20 inch, 30 inch, 40 inch, 60 inch, 70 inch

End Cap

DOE, 222/Fin, 222/Flat, 226/Fin, 226/Flat

Get Price

High Efiiciency

Long Service Life

FDA Certificated

  • Description
  • Ordering Information

Pleated cartridge filters are widely used in industrial filtration systems due to their excellent filtration efficiency, high dirt holding capacity, and long service life.

The pleated structure significantly increases the effective filtration surface area compared with melt blown or string wound filter cartridges. This design allows higher flow rates while maintaining low pressure drop, making pleated filters an ideal solution for high-performance filtration systems.

Our pleated cartridge filters are manufactured using advanced membrane and depth media such as PP, PES, PTFE, PVDF, and Nylon, making them suitable for a wide range of industrial applications including water treatment, food & beverage, pharmaceuticals, microelectronics, chemicals, and power plants.

PF-ME-0100-10-P-H-1-S
ModelMediaMicronLengthInner CoreOuter SurfaceEnd CapO-Ring
PFPP = Polypropylene
PES = Polyethersulfone
PTFE = Polytetrafluoroethylene
PVDF = Polyvinylidene Fluoride
GF = Glass Fiber
NY = Nylon		0010 = 0.10 μm
0020 = 0.20 μm
0045 = 0.45 μm
0100 = 1.0 μm
0500 = 5.0 μm
1000 = 10 μm		05 = 5 Inch
10 = 10 Inch
20 = 20 Inch
30 = 30 Inch
40 = 40 Inch		P = PP
S = SUS304
U = SUS316		H = PP Support
M = Mesh Surface
S = SUS304
U = SUS316		0 = DOE
1 = 222 Flat
2 = 222 Fin
3 = 226 Flat
4 = 226 Fin		S = Silicone
F = FKM (Viton)
E = EPDM
N = NBR
T = PTFE

3️⃣ Key Features

High Filtration Efficiency

Pleated cartridge filters provide excellent particle removal efficiency, ensuring stable and reliable filtration performance.

Large Filtration Area

The pleated design increases filtration area several times compared with conventional depth filters.

High Flow Rate

Low pressure drop enables higher flow rates and improves overall filtration system efficiency.

Long Service Life

Large dirt holding capacity reduces filter replacement frequency.

Wide Chemical Compatibility

Available in various membrane materials suitable for aggressive chemicals and solvents.

Thermal Bonded Construction

No adhesives are used in the manufacturing process, ensuring high purity filtration.

Meets FDA Safety Requirements

Ensures all materials and production processes comply with FDA safety requirements.



4️⃣ Technical Specifications

ParameterSpecification
Filter MediaPP, PES, PTFE, PVDF, Nylon
Support LayerPolypropylene
Core / CagePolypropylene,  Mesh Surface, Stainless Steel (SUS304, SUS316)
End CapsDOE (Double Open End), 222/Fin, 222/Flat, 226/Fin, 226 Flat
Micron Rating0.1 – 50 μm
Length10″, 20″, 30″, 40″, 50″, 60″, 70″
Outer Diameter60mm, 62mm, 64mm, 66mm, 68 mm
Inner Diameter28 mm
Max Operating Temperature80°C
Max Differential Pressure4.0 bar



5️⃣ Applications

Pleated cartridge filters are used in a wide range of industrial filtration applications.

Water Treatment

Removal of suspended solids, sediments, and fine particles in municipal and industrial water systems.

Food & Beverage

Filtration of beer, wine, bottled water, and process liquids.

Pharmaceutical Industry

Sterile filtration and biopharmaceutical process filtration.

Electronics Industry

Ultra-pure water filtration for semiconductor manufacturing.

Chemical Industry

Filtration of solvents, acids, and process chemicals.

Power Plants

Condensate filtration and cooling water treatment.



6️⃣ Material Options

To meet different filtration requirements, pleated filter cartridges are available in several membrane materials.

PP Pleated Filter Cartridge

  • Cost-effective solution

  • Excellent chemical resistance

  • Suitable for general water filtration

PES Pleated Filter Cartridge

  • Hydrophilic membrane

  • High filtration precision

  • Ideal for pharmaceutical and beverage applications

PTFE Pleated Filter Cartridge

  • Hydrophobic membrane

  • Excellent chemical compatibility

  • Suitable for gas filtration and aggressive solvents

PVDF Pleated Filter Cartridge

  • Strong chemical resistance

  • High mechanical strength

  • Suitable for chemical and semiconductor industries

Nylon Pleated Filter Cartridge

  • Good solvent compatibility

  • Suitable for organic solvent filtration



7️⃣ Why Choose Our Pleated Cartridge Filters

Professional Manufacturer

We are a professional manufacturer specializing in pleated filter cartridges for industrial filtration systems.

Strict Quality Control

Each filter cartridge undergoes strict quality testing to ensure stable filtration performance.

Customized Filtration Solutions

We can customize filtration accuracy, membrane materials, and cartridge structures based on customer requirements.

Competitive Factory Price

Direct factory supply ensures competitive pricing and stable product quality.

Global Export Experience

Our pleated filter cartridges have been exported to many countries and widely used in various industries.



8️⃣ Pleated Cartridge Filter FAQ

What is a pleated cartridge filter?

A pleated cartridge filter is a filtration element that uses pleated filter media to increase filtration surface area, providing high filtration efficiency and longer service life.

What are pleated filters used for?

Pleated filters are widely used in water treatment, food and beverage processing, pharmaceuticals, chemicals, and electronics manufacturing.

What micron ratings are available?

Pleated cartridge filters are available from 0.1 micron to 50 micron, depending on filtration requirements.

What is the advantage of pleated filters?

The pleated design increases filtration area, resulting in higher flow rate, lower pressure drop, and longer filter life.

How long does a pleated filter last?

The service life depends on the filtration conditions and contaminant load, but pleated filters generally last longer than depth filters.

Related Product

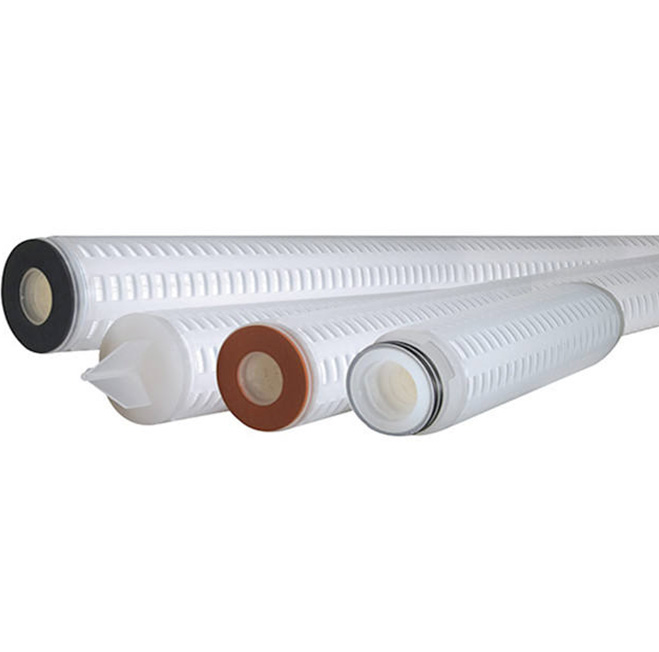

Hydrophobic PTFE Filter Cartridge for Air & Gas Filtration

Hydrophobic PTFE Filter Cartridge for Air & Gas Filtration

价格范围：$12.00 至 $150.00 选择选项

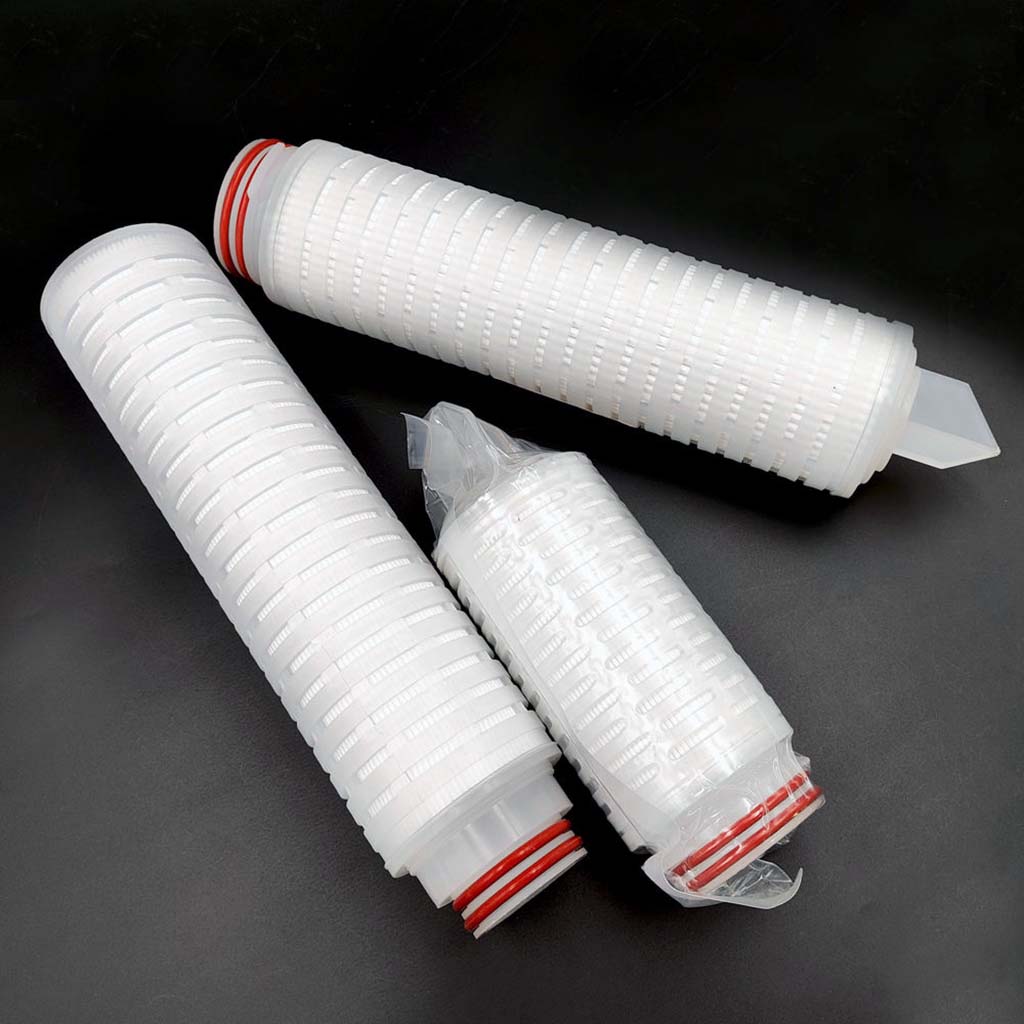

Hydrophilic PTFE Filter Cartridge for Liquid Filtration
