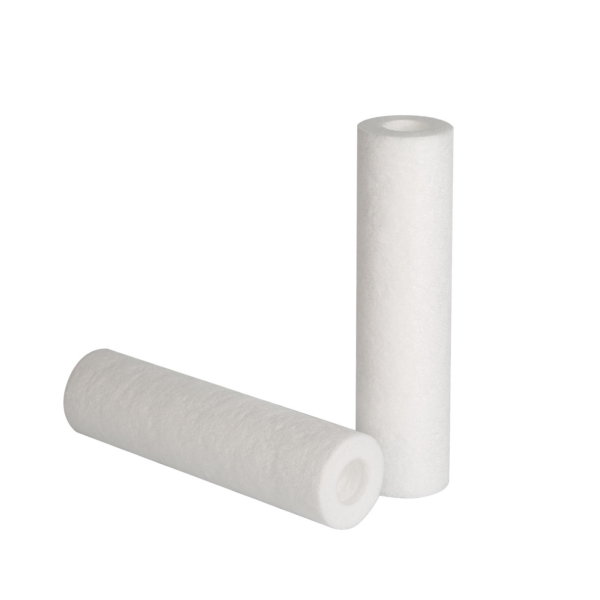

Melt Blown Filter Cartridge

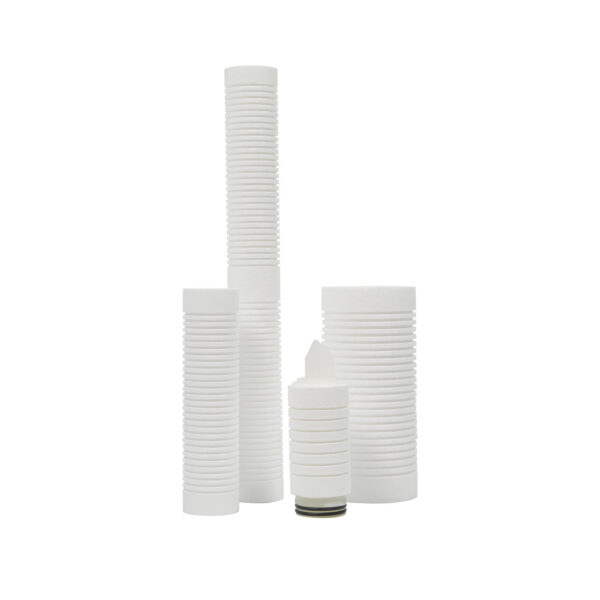

depth filter cartridge melt blown filter cartridge
评分为 4.3(共 5)

Melt Blown Filter Cartridge

价格范围:$2.00 至 $7.00

Melt Blown Filter Cartridge is a depth filtration cartridge made of 100% pure polypropylene fibers through thermal melt blown technology. The gradient density structure ensures high dirt holding capacity, low pressure drop, and stable filtration efficiency.

Filter Media

PP

Micron

1um, 5um, 10um, 20um, 50um

length

10 inch, 20 inch, 30 inch, 40 inch, 60 inch, 70 inch

End Cap

DOE, 222/Fin, 222/Flat, 226/Fin, 226/Flat

High Efiiciency

Long Service Life

  • Description
  • Ordering Information

The PP Melt Blown Filter Cartridge is a depth filtration cartridge made of 100% polypropylene fibers using advanced melt-blown technology. The cartridge features a gradient density structure that provides excellent dirt holding capacity and high filtration efficiency.

It is widely used in water treatment, food and beverage processing, chemical filtration, and pharmaceutical applications to remove suspended solids, sediments, rust, and particles from liquids.

The melt blown filter cartridge offers stable performance, high flow rate, and long service life, making it an ideal pre-filtration solution for various industrial filtration systems.

MBF-ME-0100-10-P-H-1-S
ModelMediaMicronLengthInner CoreOuter SurfaceEnd CapO-Ring

MBF

PP = Polypropylene0100 = 1.0 μm
0500 = 5.0 μm
1000 = 10 μm
2000 = 20 μm
5000 = 1.0 μm
10 = 10 Inch
20 = 20 Inch
30 = 30 Inch
40 = 40 Inch
50 = 30 Inch
60 = 40 Inch
70 = 30 Inch
P = PP
S = SUS304
U = SUS316
S = Smooth
G = Groove
M = Mesh
0 = DOE
1 = 222 Flat
2 = 222 Fin
3 = 226 Flat
4 = 226 Fin
N = NA
S = Silicone
F = FKM (Viton)
E = EPDM
N = NBR
T = PTFE

Key Features

  • 100% polypropylene construction, no adhesives or binders

  • Gradient density structure for higher dirt holding capacity

  • Excellent chemical compatibility

  • Low pressure drop and high flow rate

  • Wide range of filtration ratings (1–100 micron)

  • Suitable for water, chemicals, and industrial liquids

  • FDA compliant materials available for food and beverage applications


Technical Specifications

ParameterSpecification
MaterialPolypropylene (PP)
Filtration Rating1, 5, 10, 20, 50, 100 μm
Outer Diameter63 mm
Inner Diameter28 mm
Length5″, 10″, 20″, 30″, 40″
Max Operating Temperature80°C
Max Differential Pressure2.5 bar
CertificationFDA 21 CFR 177.1520 Compliant




Applications

PP melt blown filter cartridges are widely used in:

  • Water treatment filtration systems

  • Reverse osmosis pre-filtration

  • Food and beverage processing

  • Chemical liquid filtration

  • Electroplating solution filtration

  • Pharmaceutical and cosmetics industries


Filtration Structure

The melt blown filter cartridge adopts a three-layer gradient density design:

  1. Outer layer – coarse filtration for large particles

  2. Middle layer – medium filtration for suspended solids

  3. Inner layer – fine filtration for small particles

This design significantly improves the dirt holding capacity and extends service life.


Advantages

  • Higher dirt holding capacity than string wound filters

  • Lower pressure drop and higher flow rate

  • Consistent filtration performance

  • Cost-effective pre-filtration solution
