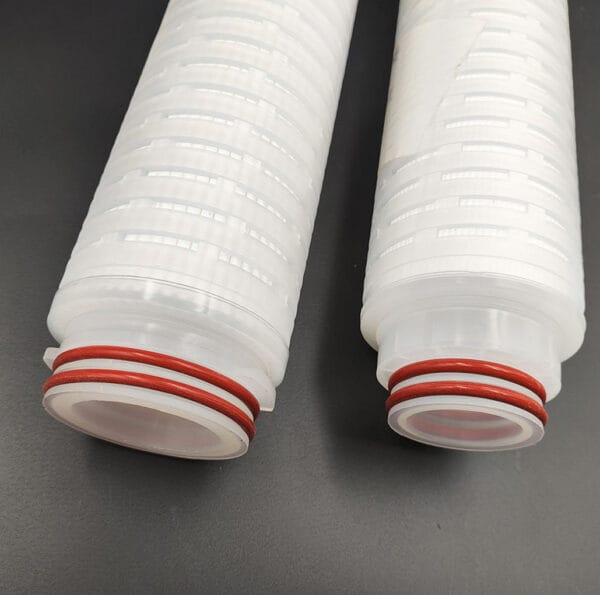

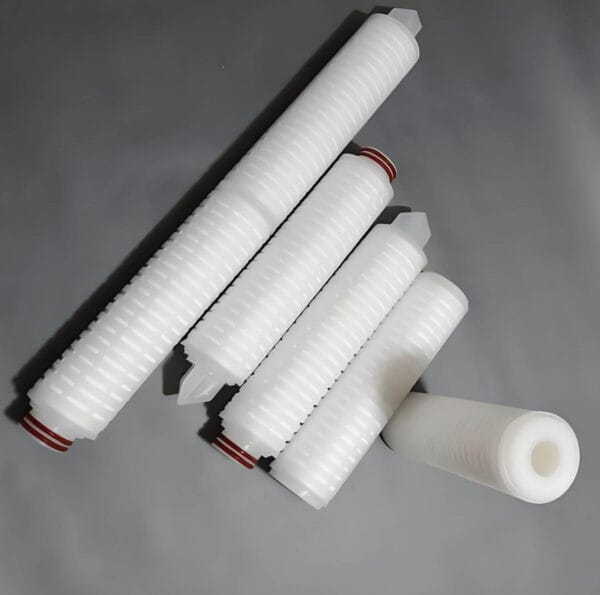

High Quality PREcart PP II Replacement Filter Cartridges
High Quality PREcart PP II Replacement Filter Cartridges
价格范围：$3.00 至 $39.00
These replacement filter cartridges are designed as a high-quality alternative to PREcart PP II filter cartridge, providing reliable filtration performance for industrial liquid applications. Manufactured with advanced polypropylene pleated media, the cartridges offer consistent particle removal, high flow capacity, and extended service life, making them suitable for water treatment, chemical processing, and general industrial filtration systems.
| Filter Media | PP (Polypropylene) |
|---|---|
| Micron | 1um, 2um, 3um, 5um, 10um, 20um |
| length | 10 inch, 20 inch, 30 inch, 40 inch |
| End Cap | DOE, SEO, 222/Fin, 222/Flat, 226/Fin, 226/Flat |
The High Quality PREcart PP II Replacement Filter Cartridges are engineered to provide a cost-effective and dependable substitute for original PREcart PP II filters. Built using premium polypropylene materials, these cartridges deliver excellent chemical compatibility and stable filtration performance across a wide range of industrial applications.
The pleated filter structure significantly increases the available filtration area, enabling higher throughput and improved contaminant retention compared to conventional depth filters. This results in longer operating cycles and reduced maintenance frequency.
Designed for consistent and repeatable filtration performance, the cartridges effectively remove suspended solids, particulates, and impurities from process liquids, helping maintain system efficiency and protect downstream equipment.
Available in multiple micron ratings and standard sizes, these cartridges are fully compatible with filter housings designed for PREcart PP II elements, allowing for direct replacement without system modification.
They are widely used in industrial water systems, food and beverage production, chemical processing, and manufacturing industries, where reliable filtration and cost control are essential.
| PF | -PES | -0100 | -10 | -P | -H | -1 | -S |
| Model | Membrane | Micron | Length | Inner Core | Outer Surface | End Cap | O-Ring |
| PF | PP (Polypropylene) | 0100 = 1.0 μm | 05 = 5 Inch 10 = 10 Inch 20 = 20 Inch 30 = 30 Inch 40 = 40 Inch | P = PP | H = PP Support M = Mesh Surface S = SUS304 U = SUS316 | 0 = DOE 1 = SOE 2 = 222 Flat 3 = 222 Fin 4 = 226 Flat 5 = 226 Fin | S = Silicone F = FKM (Viton) E = EPDM N = NBR T = PTFE |
1️⃣ Key Features of PREcart PP II Filter Cartridges
Designed for Direct Replacement
Engineered to match PREcart PP II specifications, ensuring seamless integration into existing systems without modification.
High-Quality Polypropylene Media
Constructed with durable PP materials that provide excellent resistance to a wide range of industrial liquids.
Optimized Pleated Structure
Increases filtration surface area, enabling higher flow rates and improved dirt holding capacity.
Stable Filtration Performance
Ensures consistent particle removal efficiency throughout the cartridge’s service life.
Low Pressure Drop
Designed to maintain efficient system operation with minimal resistance to liquid flow.
Wide Range of Filtration Ratings
Available in multiple micron levels to meet diverse filtration requirements.
2. Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | PP Pleated Filter Cartridge Replacement |
| Compatible Model | PREcart PP II |
| Filter Media | Polypropylene |
| Support Layer | Polypropylene |
| Core / Cage | Polypropylene |
| Micron Rating | 0.5 – 50 μm |
| Length | 10″, 20″, 30″, 40″ |
| Outer Diameter | 68 mm |
| Inner Diameter | 28 mm |
| Maximum Operating Temperature | 80°C |
| Maximum Differential Pressure | 4.0 bar |
Download Product Brochure
PREcart PP II Filter Cartridges Typical Applications
PREcart PP II Filter Cartridges Typical Applications| Industry | Filtration Application | Purpose |
|---|---|---|
| Water Treatment | Process water filtration | Remove suspended solids and protect equipment |
| Food & Beverage | Liquid processing filtration | Ensure product clarity and quality |
| Chemical Industry | Process fluid filtration | Prevent contamination in production |
| Manufacturing | Cooling and process liquids | Improve operational stability |
| General Industry | Pre-filtration systems | Enhance downstream filtration efficiency |
Quality Control & Certifications
Quality Control & CertificationsStrict Manufacturing Process
Each cartridge is produced under controlled manufacturing conditions to ensure consistent product quality, dimensional accuracy, and structural integrity.
FDA Compliance
The polypropylene materials used comply with FDA regulations for food contact applications, making the cartridges suitable for use in food, beverage, and potable water systems.
Batch Quality Inspection
Every production batch undergoes rigorous inspection to verify filtration performance, pressure resistance, and material consistency.
Performance Testing
Finished products are tested for flow rate, filtration efficiency, and mechanical strength, ensuring reliable operation in demanding industrial environments.
Advantages of PREcart PP II Replacement Cartridges
Advantages of PREcart PP II Replacement Cartridges- Direct replacement for PREcart PP II filter cartridges
- High-quality polypropylene construction
- Improved filtration efficiency and consistency
- High flow capacity with low pressure drop
- Extended service life and reduced maintenance
- Cost-effective alternative for industrial filtration systems
FAQ
FAQIs this cartridge compatible with PREcart PP II filters?
Yes, it is designed as a direct replacement, ensuring full compatibility with PREcart PP II systems.
What materials are used in the cartridge?
The cartridge is made from 100% polypropylene, offering excellent chemical resistance.
What micron ratings are available?
Filtration ratings typically range from 0.5 μm to 50 μm.
Can it be used in food and beverage applications?
Yes, the materials comply with FDA standards, making it suitable for such applications.
What advantages does this replacement cartridge offer?
It provides reliable filtration performance, long service life, and a more economical solution compared to original filters.
