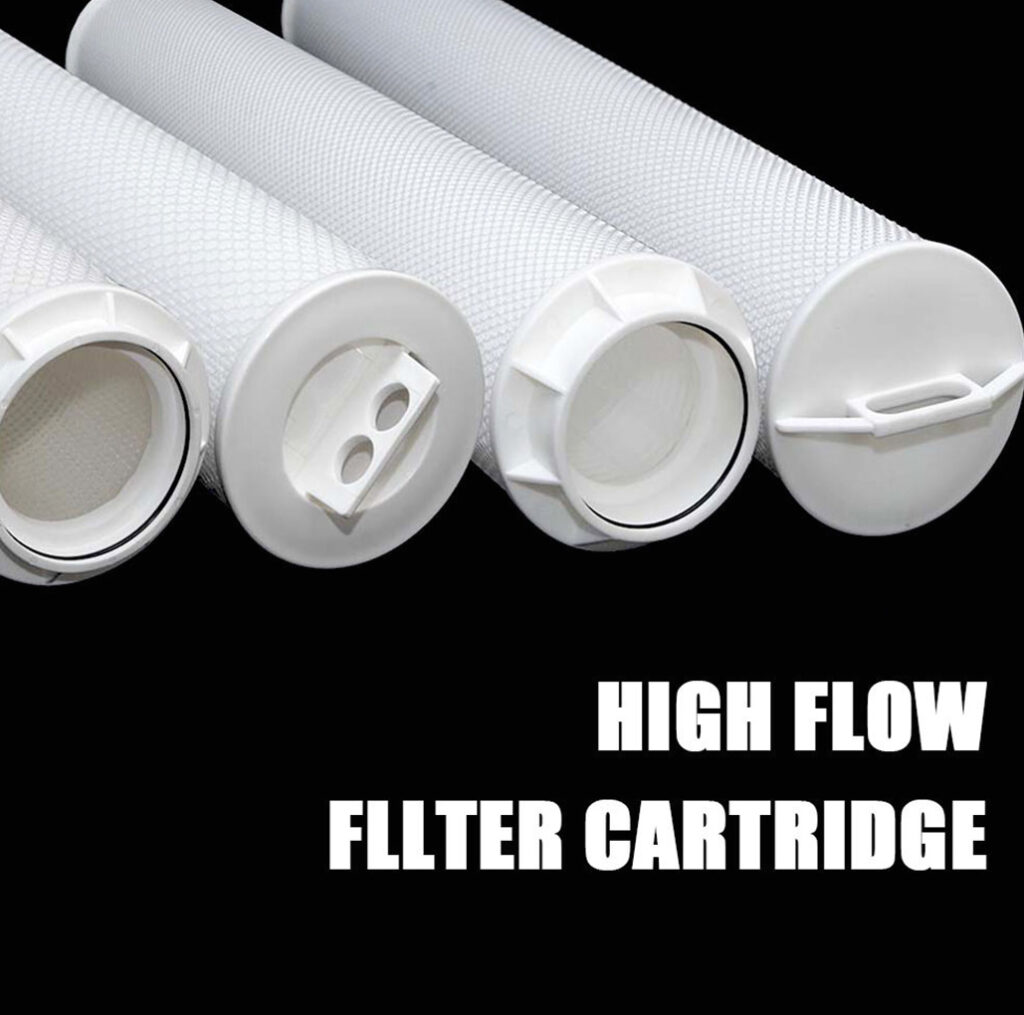

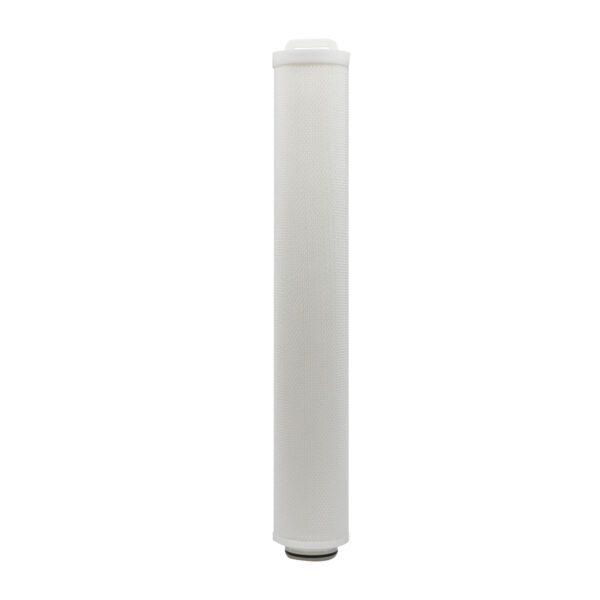

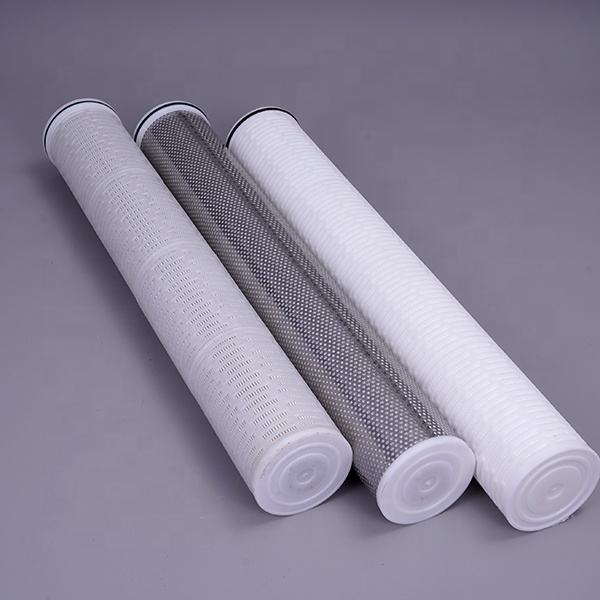

High flow Filter Cartridge for Water Treatment
评分为 4.3（共 5）
High flow Filter Cartridge for Water Treatment
价格范围：$5.00 至 $120.00
This high flow filter cartridge is engineered for water treatment applications, offering low pressure drop, large filtration surface, and reliable particle removal. Ideal for municipal, industrial, and commercial water systems, it ensures efficient sediment and contaminant filtration while maintaining consistent flow rates. Available in multiple micron ratings and standard lengths, it fits most housings and provides long-lasting, cost-effective performance for pre-filtration and point-of-use systems.
| length | 10 inch, 20inch, 30inch, 40inch, 60inch |
|---|---|
| micron | 5 um |
| filter media | pp, glass fiber |
| end cap | pall, 3m, parker basket |
The High Flow Filter Cartridge for Water Treatment is designed to handle large volumes of water efficiently while maintaining high filtration performance. Its pleated filter media increases surface area, providing a longer service life and reduced system maintenance compared to conventional depth filters.
This cartridge effectively removes sediment, rust, sand, and other suspended solids, protecting downstream equipment such as RO membranes, pumps, and valves. It is ideal for applications in municipal water treatment plants, industrial water systems, food and beverage processing, and commercial water purification units.
Constructed with durable polypropylene or other compatible materials, this filter withstands standard water treatment conditions and offers excellent chemical and thermal stability for a wide range of pH and temperature conditions.
High Flow Filter Cartridges are available in 10", 20", 30", and 40" lengths, with micron ratings ranging from 1 μm to 50 μm, allowing flexible selection based on water quality and system requirements.
| HF | -ME | -0100 | -10 | -P | -H | -1 | -S |
| Model | Media | Micron | Length | Inner Core | Outer Surface | End Cap | O-Ring |
| HF | PP = Polypropylene GF = Glass Fiber | 0020 = 0.20 μm 0045 = 0.45 μm 0100 = 1.0 μm 0500 = 5.0 μm 1000 = 10 μm 2000 = 20 μm | 10 = 10 Inch 20 = 20 Inch 30 = 30 Inch 40 = 40 Inch 60 = 60 Inch | P = PP | H = PP Support M = Mesh Surface S = SUS304 U = SUS316 | 0 = Flat 1 = Single O-ring 2 = Double O-ring 3 = Basket 4 = Fin | S = Silicone F = FKM (Viton) E = EPDM N = NBR T = PTFE |
Key Features
Key FeaturesLarge 6-Inch Diameter
High flow capacity for industrial-scale water systems
Pleated Polypropylene Media
Efficient particle retention and low pressure drop
Wide Micron Range
Optimized pleated design ensures minimal resistance in gas flow systems.
Durable Construction
Chemically resistant polypropylene support and end caps
Easy Installation
Compatible with standard 6-inch filter housings
Extended Service Life
Large pleated surface area reduces maintenance frequency
Versatile Applications
Suitable for municipal, industrial, and commercial water systems
Food Grade Certificated
FDA compliant materials available for food and beverage applications
4️⃣ Technical Specifications
| Parameter | Specification |
|---|---|
| Filter Type | High Flow Pleated Filter Cartridge |
| Media | Polypropylene |
| Support Layer | Polypropylene |
| Core / Cage | Polypropylene |
| End Caps | Polypropylene |
| Micron Rating | 1 – 50 μm |
| Length | 20″, 30″, 40″ (customizable) |
| Outer Diameter | 6 inch (152 mm) |
| Inner Diameter | 2.75 inch (70 mm) |
| Max Operating Temperature | 80°C |
| Max Differential Pressure | 3.5 bar |
| Certification | FDA 21 CFR 177.1520 Compliant |
5️⃣ Applications of 6-Inch High Flow Filter Cartridges
| Industry | Application | Purpose |
|---|---|---|
| Municipal Water | Large-scale water treatment systems | Remove sediment and suspended solids |
| Industrial Water | Cooling towers, boilers, process water | Protect equipment and maintain flow |
| Food & Beverage | Pre-filtration of industrial water | Ensure clean water for production |
| Chemical Processing | Industrial water for reactions | Remove particulate contaminants |
| Commercial Facilities | Water filtration for hotels, hospitals | Maintain water clarity and system efficiency |
| Wastewater | Pretreatment before membranes | Extend membrane life and reduce fouling |
6️⃣ Advantages of 6-Inch High Flow Filter Cartridges
- Maximum Flow Rate – Large 6-inch diameter allows high-volume filtration
- Reduced Pressure Drop – Pleated design maintains system efficiency
- Durable and Long-Lasting – Resistant to chemical exposure and mechanical stress
- Easy Replacement – Compatible with standard housings for quick maintenance
- Versatile Applications – Ideal for municipal, industrial, and commercial water systems
- Cost-Effective Operation – Extended service life lowers maintenance frequency and cost
7️⃣ FAQ – High Flow Water Treatment Filter Cartridge
Q1: What makes this cartridge “high flow”?
A1: The 6-inch diameter and pleated media design allow a large water volume to pass with minimal pressure drop.
Q2: What micron ratings are available?
A2: Common ratings range from 1 μm to 50 μm, suitable for sediment, rust, and particulate removal.
Q3: Can it be used in industrial water systems?
A3: Yes, it is designed for municipal, industrial, and commercial water treatment applications.
Q4: How often should the cartridge be replaced?
A4: Replacement depends on water quality and flow rate, but the pleated design maximizes dirt holding capacity, extending service life.
Q5: Is it compatible with standard housings?
A5: Yes, the cartridge is compatible with 6-inch diameter filter housings commonly used in industrial water systems.
Related Product
- Membrane Pleated Filter Cartridge

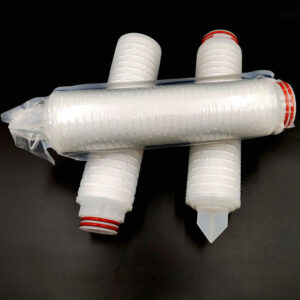

All PVDF Filter Cartridge for Aggressive Chemical Liquids
价格范围：$99.00 至 $599.00 选择选项 本产品有多种变体。 可在产品页面上选择这些选项 - Membrane Pleated Filter Cartridge

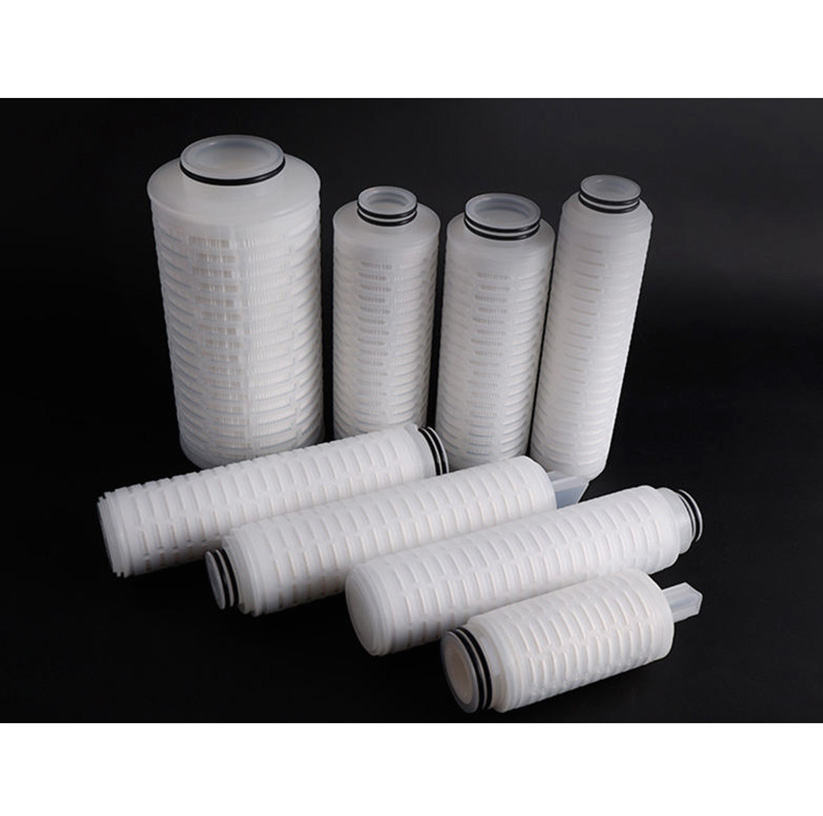

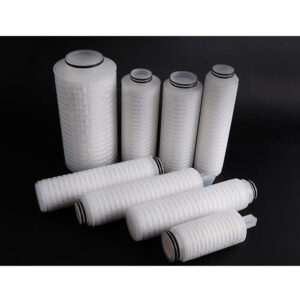

Chemical Resistant PVDF Filter Cartridge for Aggressive Fluids
价格范围：$11.00 至 $89.00 选择选项 本产品有多种变体。 可在产品页面上选择这些选项 - Membrane Pleated Filter Cartridge

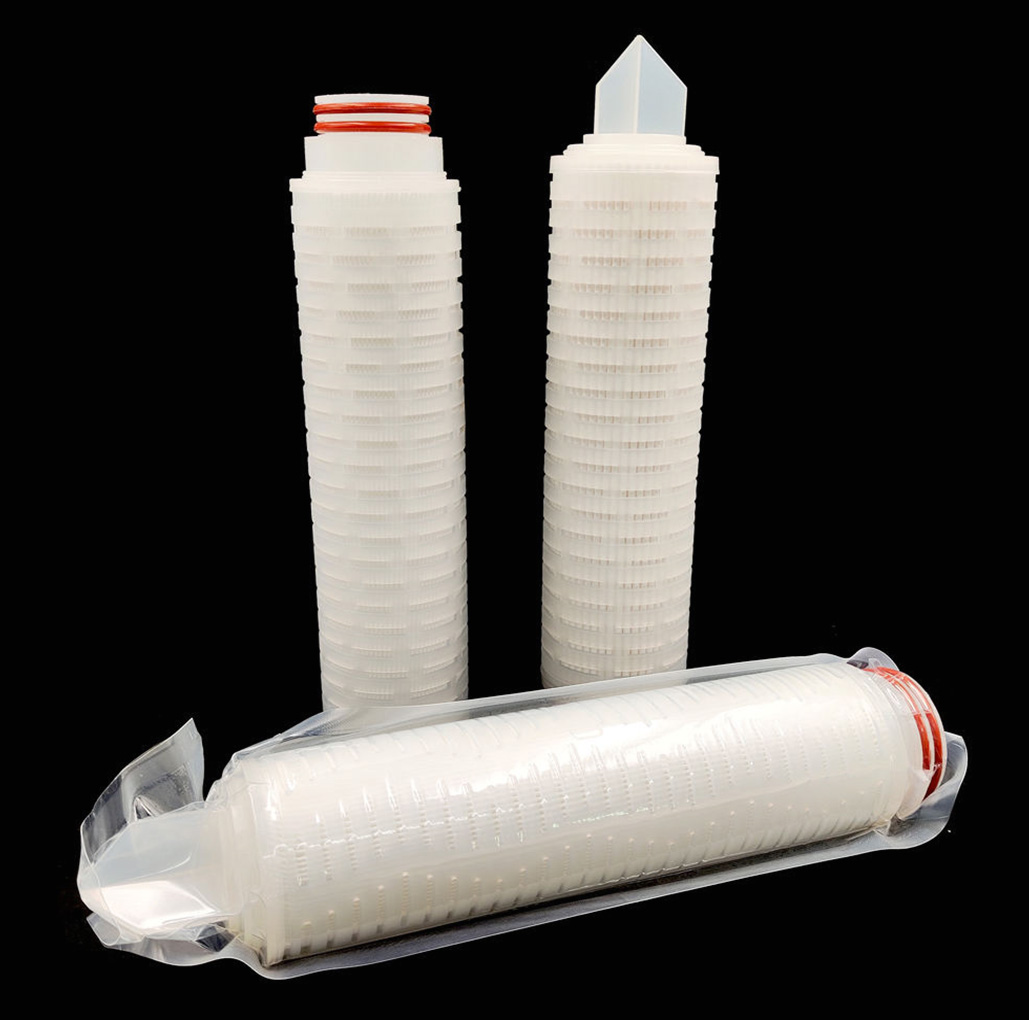

Sterilizing Grade 0.22 μm PTFE Membrane Filter Cartridge
价格范围：$12.00 至 $150.00 选择选项 本产品有多种变体。 可在产品页面上选择这些选项 - Membrane Pleated Filter Cartridge

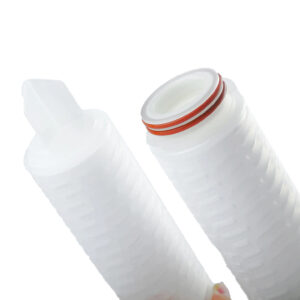

All PTFE Pleated Filter Cartridge for Corrosive Chemical
价格范围：$99.00 至 $699.00 选择选项 本产品有多种变体。 可在产品页面上选择这些选项 - Membrane Pleated Filter Cartridge
Hydrophobic PTFE Filter Cartridge for Air & Gas Filtration
价格范围：$12.00 至 $150.00 选择选项 本产品有多种变体。 可在产品页面上选择这些选项 - Membrane Pleated Filter Cartridge

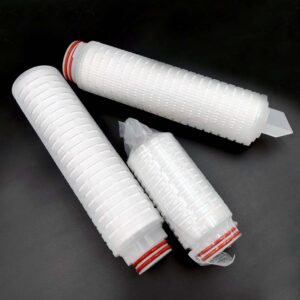

Hydrophilic PTFE Filter Cartridge for Liquid Filtration
价格范围：$2.00 至 $7.00 选择选项 本产品有多种变体。 可在产品页面上选择这些选项 - Membrane Pleated Filter Cartridge

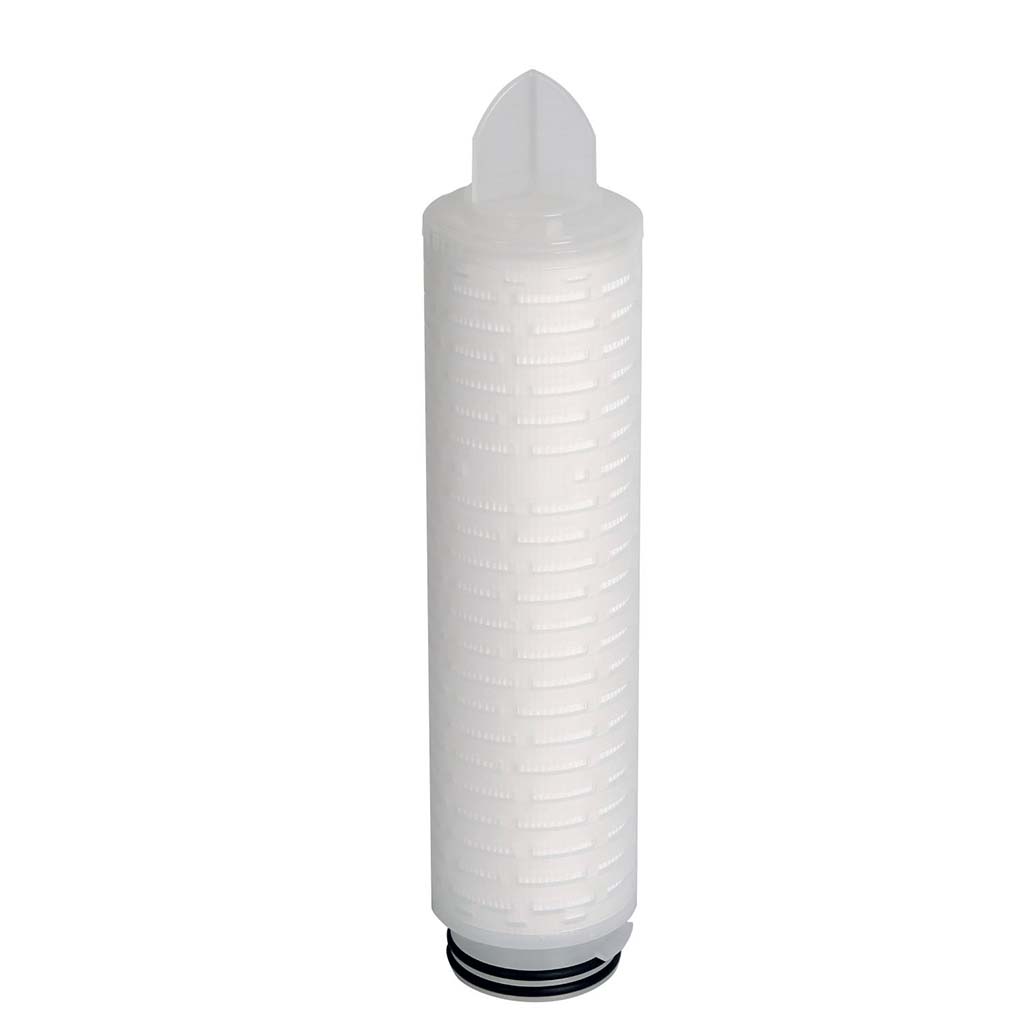

10 inch PP Pleated Filter Cartridge
价格范围：$2.00 至 $12.00 选择选项 本产品有多种变体。 可在产品页面上选择这些选项 - Membrane Pleated Filter Cartridge

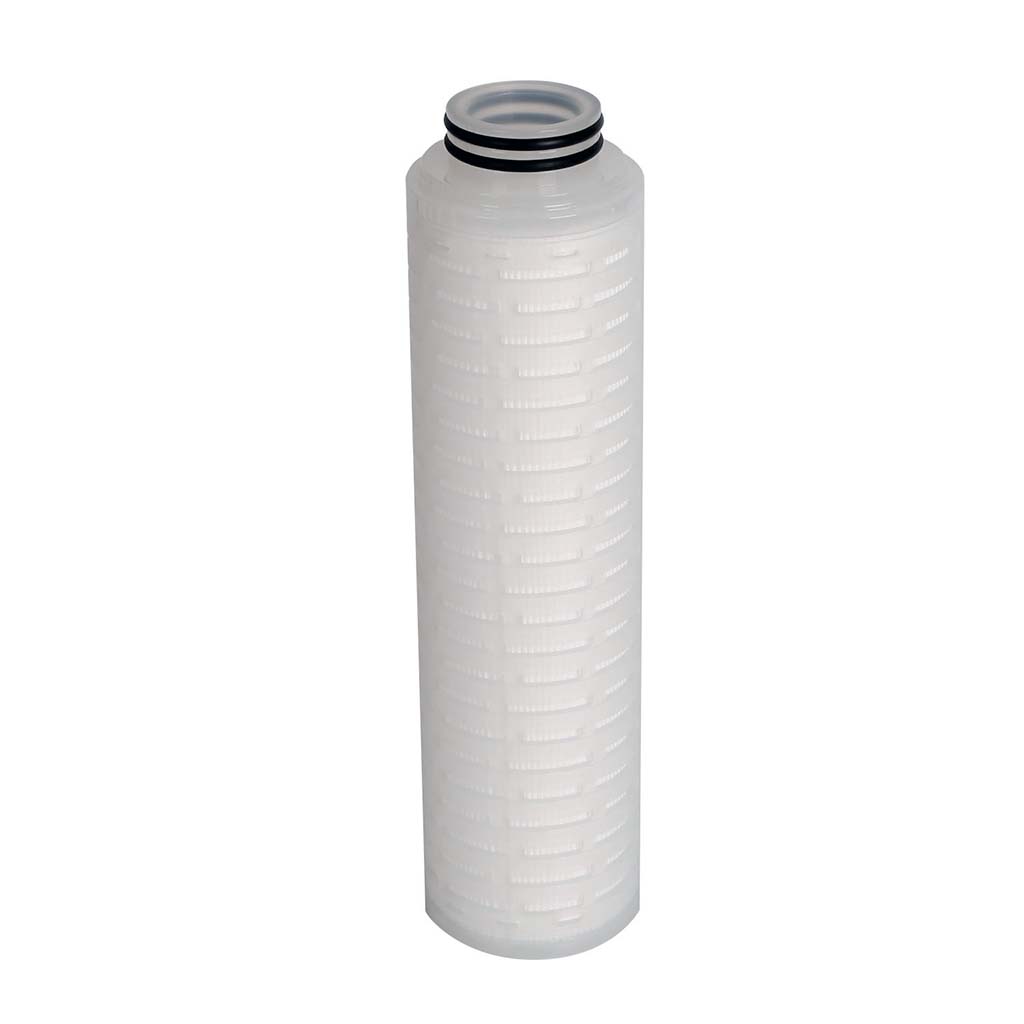

China PP Pleated Filter Cartridge
价格范围：$2.00 至 $12.00 选择选项 本产品有多种变体。 可在产品页面上选择这些选项 - Membrane Pleated Filter Cartridge

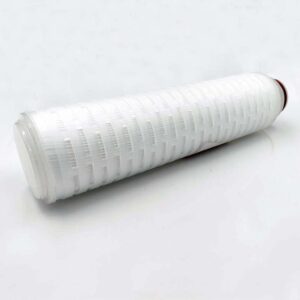

Standard Efficiency Pleated Filter Cartridges
价格范围：$2.00 至 $40.00 选择选项 本产品有多种变体。 可在产品页面上选择这些选项 - Membrane Pleated Filter Cartridge
Pleated Liquid Filter Cartridges
价格范围：$2.00 至 $40.00 选择选项 本产品有多种变体。 可在产品页面上选择这些选项 - Membrane Pleated Filter Cartridge

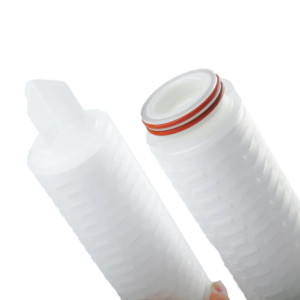

Pleated Style Gas Filter Cartridges
价格范围：$13.00 至 $90.00 选择选项 本产品有多种变体。 可在产品页面上选择这些选项 - Membrane Pleated Filter Cartridge

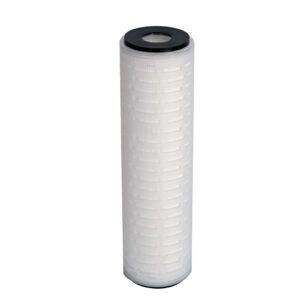

Pleated Polypropylene Filter Cartridge
