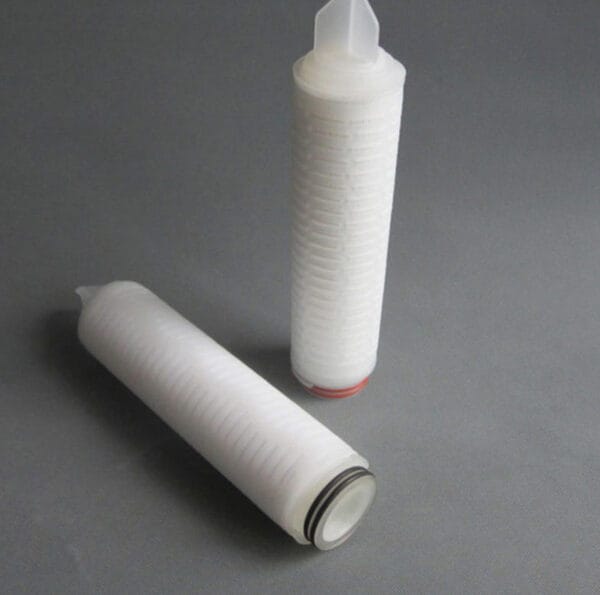

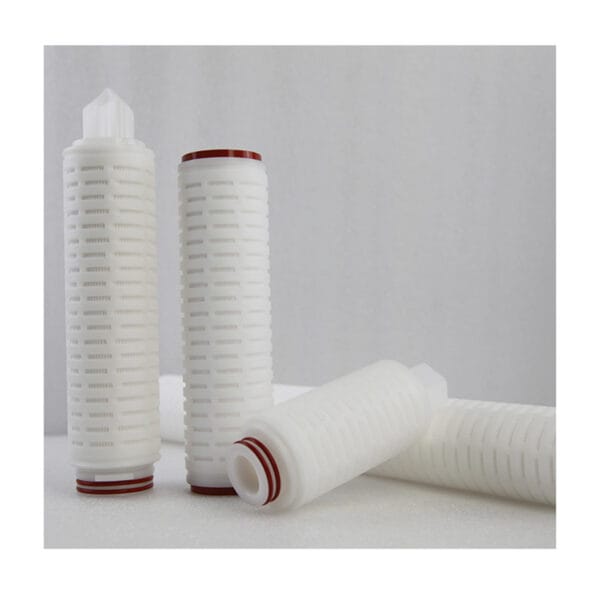

Pall Profile Star PP Pleated Filter Cartridge Replacement
Pall Profile Star PP Pleated Filter Cartridge Replacement
价格范围：$3.00 至 $39.00
This replacement cartridge is designed as a fully compatible alternative to Pall Profile Star PP Pleated Filter Cartridges, delivering reliable filtration performance with polypropylene pleated media and wide chemical compatibility. With standard dimensions and connection types, the cartridge can be directly installed into existing systems without modification.
| Filter Media | PP (polypropylene) |
|---|---|
| Micron | 0.1um, 0.22um, 0.45um, 0.65um, 1um, 5um, 10um |
| length | 10 inch, 20 inch, 30 inch, 40 inch |
| End Cap | DOE, 222/Fin, 222/Flat, 226/Fin, 226/Flat |

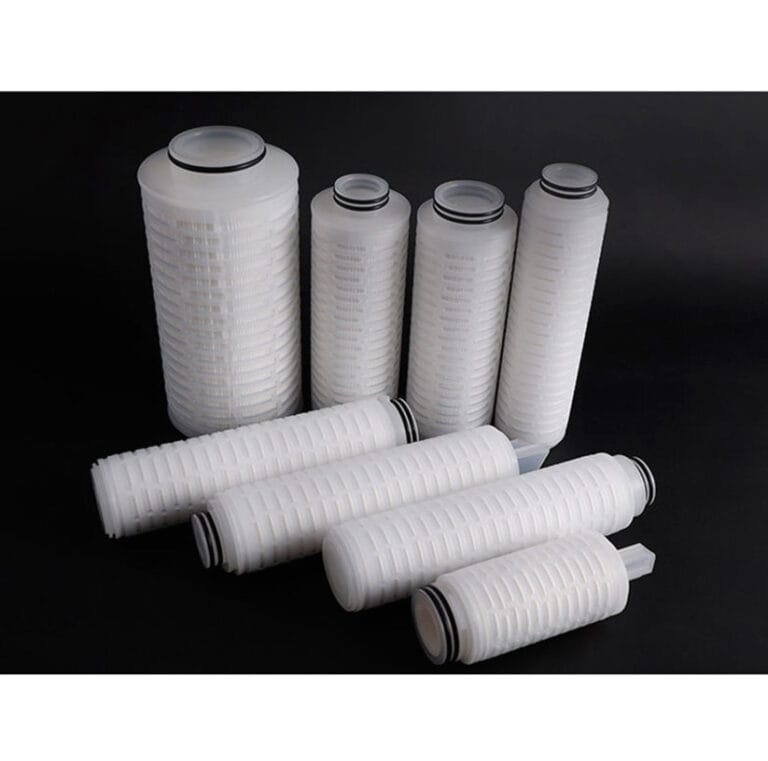

The Pall Profile Star PP Pleated Filter Cartridge Replacement is developed to provide a cost-effective and reliable alternative for systems currently using Profile Star series cartridges. Manufactured from high-quality polypropylene materials, this filter ensures excellent compatibility with a wide range of liquids, including water, chemicals, and process fluids.
The pleated construction significantly increases the filtration surface area, allowing the cartridge to achieve higher flow rates and improved dirt holding capacity compared with conventional depth filters. This results in longer service intervals and reduced maintenance costs.
Designed for consistent filtration performance, the cartridge effectively removes suspended solids, particulates, and contaminants, helping protect downstream equipment and maintain process efficiency.
It is available in multiple micron ratings and standard lengths (10", 20", 30", 40"), ensuring compatibility with most industrial filter housings that accommodate Pall Profile Star cartridges.
This replacement solution is widely used in industrial water treatment, chemical processing, food & beverage production, and manufacturing industries, where dependable filtration and cost control are equally important.
| PF | -PES | -0100 | -10 | -P | -H | -1 | -S |
| Model | Membrane | Micron | Length | Inner Core | Outer Surface | End Cap | O-Ring |
| PF | PP (Polypropylene) | 0020 = 0.20 μm | 05 = 5 Inch 10 = 10 Inch 20 = 20 Inch 30 = 30 Inch 40 = 40 Inch | P = PP | H = PP Support M = Mesh Surface S = SUS304 U = SUS316 | 0 = DOE 1 = 222 Flat 2 = 222 Fin 3 = 226 Flat 4 = 226 Fin | S = Silicone F = FKM (Viton) E = EPDM N = NBR T = PTFE |
1️⃣ Key Features of Pall Profile Star PP Pleated Filter Cartridge
Direct Replacement Compatibility
Designed to match the dimensions and connection styles of Pall Profile Star cartridges, enabling seamless installation without system modification.
Polypropylene Pleated Media
Constructed with high-quality PP materials to provide reliable filtration and broad chemical compatibility.
High Flow Performance
Pleated structure increases filtration area, allowing higher flow rates while maintaining stable pressure conditions.
Enhanced Dirt Holding Capacity
Improved contaminant retention extends cartridge life and reduces replacement frequency.
Consistent Filtration Efficiency
Provides stable particle removal performance across the entire service cycle.
Cost-Effective Alternative
Offers comparable performance to original cartridges at a more competitive cost.
2️⃣ PP Pleated Filter Cartridge Technical Specification
| Parameter | Specification |
|---|---|
| Membrane Material | Polypropylene (PP) |
| Micron Rating | 0.22um, 0.45um, 1um, 5um, 10um, 20um, 50um |
| Length | 10″, 20″, 30″, 40″ |
| Core | Polypropylene, SS304, SS316 |
| Outer Diameter | 68 mm |
| Inner Diameter | 28 mm |
| End Caps | DOE, 222/Fin, 222/Flat, 226/Fin, 226/Flat |
| O-ring | Silicone, FKM (Viton), EPDM, NBR, PTFE |
| Max Operating Temperature | 80°C |
| Max Differential Pressure | 4.0 bar |
| Replacement Differential Pressure | 2.4 bar |
| Certificates | FDA 21 CFR 177.1520 Compliant |
Download Product Brochure
Pall Profile Star Filter Cartridge Typical Applications
Pall Profile Star Filter Cartridge Typical Applications| Industry | Filtration Application | Purpose |
|---|---|---|
| Water Treatment | Process water filtration | Remove suspended solids and protect systems |
| Chemical Industry | Liquid filtration | Ensure clean process fluids |
| Food & Beverage | Ingredient and process water filtration | Maintain product quality |
| Industrial Manufacturing | Cooling and process liquids | Prevent equipment fouling |
| General Industry | Pre-filtration systems | Improve downstream filtration efficiency |
Certifications & Compliance
Certifications & ComplianceFDA Compliance
The materials used in the PP filter cartridge comply with FDA regulations for food contact applications, making it suitable for food, beverage, and pharmaceutical processes.
International Quality Standards
Manufactured under strict quality control systems aligned with international standards to ensure consistent product quality and traceability.
Clean Manufacturing Environment
Produced in controlled environments to minimize contamination and ensure suitability for high purity and sterile applications.
Advantages of PALL Replacement PP Filter Cartridges
Advantages of PALL Replacement PP Filter Cartridges- Direct replacement for Pall Profile Star cartridges
- Reliable filtration performance with PP materials
- High flow capacity and low pressure drop
- Extended service life due to high dirt holding capacity
- Cost-effective solution for industrial filtration systems
- Easy installation with standard housing compatibility
FAQ – Pall Replacement PP Pleated Filter Cartridge
FAQ – Pall Replacement PP Pleated Filter CartridgeIs this cartridge fully compatible with Pall Profile Star filters?
Yes, it is designed as a direct replacement, matching the dimensions and installation requirements.
What materials are used in this filter cartridge?
The cartridge is made from 100% polypropylene, ensuring chemical compatibility and durability.
What micron ratings are available?
Typical filtration ratings range from 0.5 μm to 50 μm.
Can this cartridge be used in water treatment systems?
Yes, it is widely used in industrial water treatment and process filtration applications.
What are the benefits compared to original cartridges?
This replacement provides comparable performance at a lower cost, helping reduce operational expenses.
