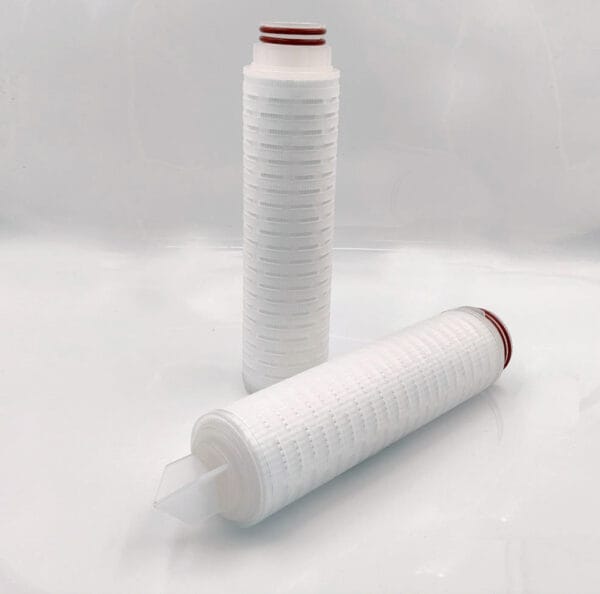

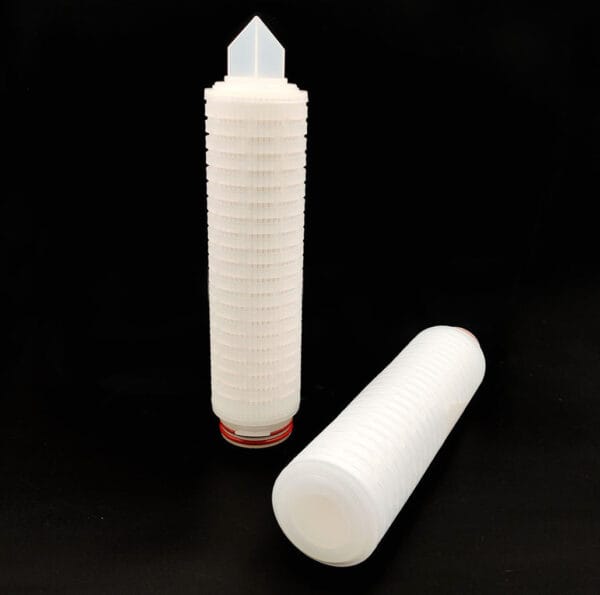

Absolute Rated PP Pleated Filter Cartridge
Absolute Rated PP Pleated Filter Cartridge
价格范围：$3.00 至 $39.00
The Absolute Rated PP Pleated Filter Cartridge is engineered for high-precision liquid filtration applications requiring stable absolute-rated performance and exceptional particle retention efficiency. With a Beta ratio of β5000 and filtration efficiency reaching 99.98%, the cartridge effectively removes fine contaminants while maintaining excellent flow performance.
| Filter Media | PP (Polypropylene) |
|---|---|
| Micron | 1um, 2um, 3um, 5um, 10um, 20um |
| length | 10 inch, 20 inch, 30 inch, 40 inch |

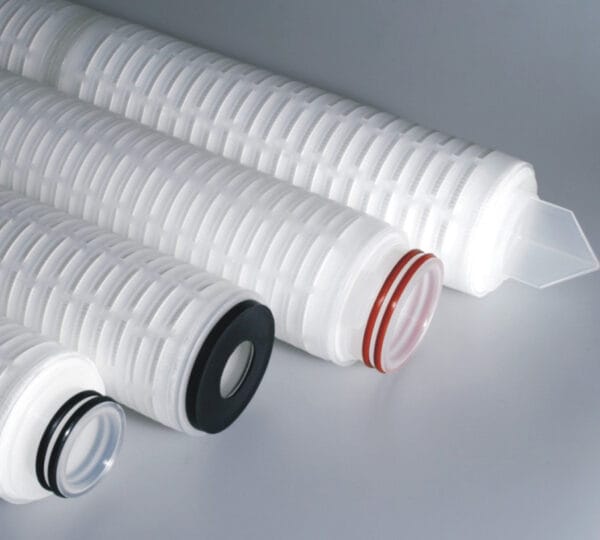

| End Cap | DOE, SEO, 222/Fin, 222/Flat, 226/Fin, 226/Flat |
The Absolute Rated PP Pleated Filter Cartridge is designed to provide highly reliable filtration performance for applications where consistent particle control is critical. Utilizing advanced polypropylene pleated media, the cartridge achieves a β=5000 filtration rating, corresponding to a particle removal efficiency of 99.98% at the specified micron size.
Unlike conventional nominal-rated cartridges, this filter is engineered for precise and repeatable filtration accuracy, ensuring stable contaminant removal throughout the entire service cycle. The pleated structure significantly increases effective filtration surface area, allowing the cartridge to maintain high flow rates while minimizing pressure loss.
The filter media consists of thermally bonded polypropylene layers that form a durable filtration matrix capable of retaining fine particles while offering excellent chemical compatibility with a wide range of liquids.
This cartridge is widely used in applications such as process water treatment, pre-filtration for membrane systems, food and beverage processing, pharmaceutical liquid filtration, and industrial chemical filtration, where protecting downstream equipment and maintaining fluid quality are essential.
Available in multiple micron ratings and standard cartridge lengths, the filter is compatible with most industrial filter housings and can be easily integrated into existing filtration systems.
| PF | -PES | -0100 | -10 | -P | -H | -1 | -S |
| Model | Membrane | Micron | Length | Inner Core | Outer Surface | End Cap | O-Ring |
| PF | PP (Polypropylene) | 0100 = 1.0 μm | 05 = 5 Inch 10 = 10 Inch 20 = 20 Inch 30 = 30 Inch 40 = 40 Inch | P = PP | H = PP Support M = Mesh Surface S = SUS304 U = SUS316 | 0 = DOE 1 = SOE 2 = 222 Flat 3 = 222 Fin 4 = 226 Flat 5 = 226 Fin | S = Silicone F = FKM (Viton) E = EPDM N = NBR T = PTFE |
1️⃣ Key Features
β5000 Absolute Filtration Performance
The cartridge achieves a Beta ratio of β5000, providing filtration efficiency up to 99.98% for highly consistent particle retention.
High Purity Polypropylene Construction
Manufactured entirely from polypropylene materials to ensure broad chemical compatibility and low extractables.
Optimized Pleated Structure
The pleated media design maximizes filtration surface area, increasing dirt holding capacity and extending operational life.
Stable Flow & Low Pressure Drop
Engineered fiber distribution maintains smooth fluid flow while reducing pressure resistance during operation.
Reliable Particle Retention
Designed for precise removal of fine suspended solids and contaminants in demanding liquid filtration systems.
Wide Industrial Compatibility
Suitable for water treatment, food processing, pharmaceutical production, and industrial liquid filtration applications.
2️⃣ Technical Specifications of Absolute Rated PP Pleated Filter Cartridge
| Parameter | Specification |
|---|---|
| Product Type | Absolute Rated PP Pleated Filter Cartridge |
| Filter Media | Polypropylene Pleated Media |
| Filtration Efficiency | 99.98% |
| Beta Ratio | β=5000 |
| Micron Rating | 0.1 – 50 μm |
| Length | 10″, 20″, 30″, 40″ |
| Outer Diameter | 68 mm |
| Inner Diameter | 28 mm |
| Maximum Operating Temperature | 80°C |
| Maximum Differential Pressure | 4.2 bar |
| Construction | Thermal Bonded Polypropylene |
Download Product Brochure
3️⃣ Absolute Rated PP Pleated Filter Cartridge Typical Applications
| Industry | Filtration Application | Purpose |
|---|---|---|
| Water Treatment | Fine particle filtration | Protect RO membranes and downstream systems |
| Food & Beverage | Ingredient and process liquid filtration | Improve product quality and cleanliness |
| Pharmaceutical | Process liquid filtration | Maintain high purity standards |
| Electronics | High purity water systems | Reduce particulate contamination |
| Chemical Industry | Industrial liquid filtration | Protect pumps, valves, and equipment |
4️⃣ Quality Control & Certifications
FDA Compliant Materials
The polypropylene materials used in the cartridge comply with FDA food contact regulations, making the filter suitable for food, beverage, and potable water applications.
Strict Manufacturing Standards
Each cartridge is produced under controlled manufacturing conditions to ensure stable filtration performance, dimensional consistency, and product reliability.
Filtration Performance Verification
Finished cartridges undergo performance testing to verify β5000 filtration accuracy, pressure resistance, and structural integrity before shipment.
Clean Production Environment
Production processes are carefully controlled to minimize contamination risks and maintain high product cleanliness standards for industrial and sanitary applications.
5️⃣ Advantages of Absolute Rated PP Pleated Filter Cartridge
- Absolute-rated filtration efficiency up to 99.98%
- β5000 particle retention performance
- High dirt holding capacity and long service life
- Excellent chemical compatibility with polypropylene materials
- Stable flow rate with low pressure drop
- Suitable for high purity industrial filtration systems
6️⃣ FAQ
What does β5000 mean in filtration?
A β5000 rating means the filter can remove 99.98% of particles at the specified micron size, providing highly efficient and consistent filtration performance.
How is this different from nominal-rated filters?
Nominal-rated filters typically have lower particle removal consistency, while absolute-rated filters provide much higher and more stable filtration efficiency.
What industries commonly use this cartridge?
The cartridge is widely used in water treatment, food and beverage, pharmaceuticals, electronics, and industrial process filtration.
What micron ratings are available?
Typical micron ratings range from 0.1 μm to 50 μm, depending on the filtration requirement.
Is the filter compatible with standard housings?
Yes, the cartridge is manufactured in standard dimensions for compatibility with most industrial filter housings.
