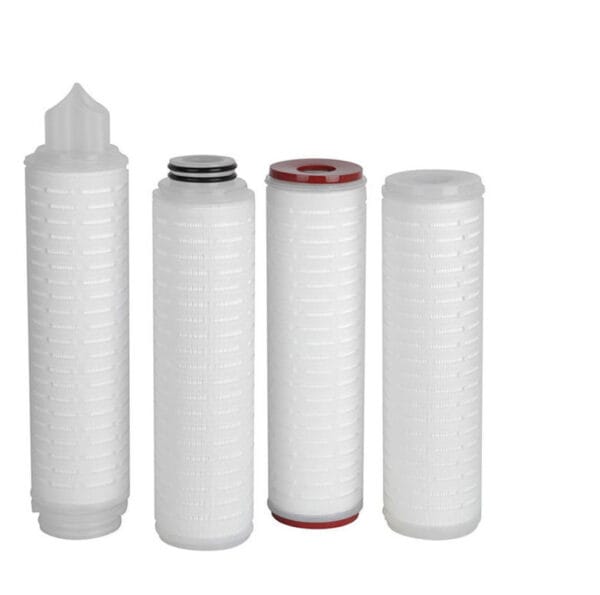

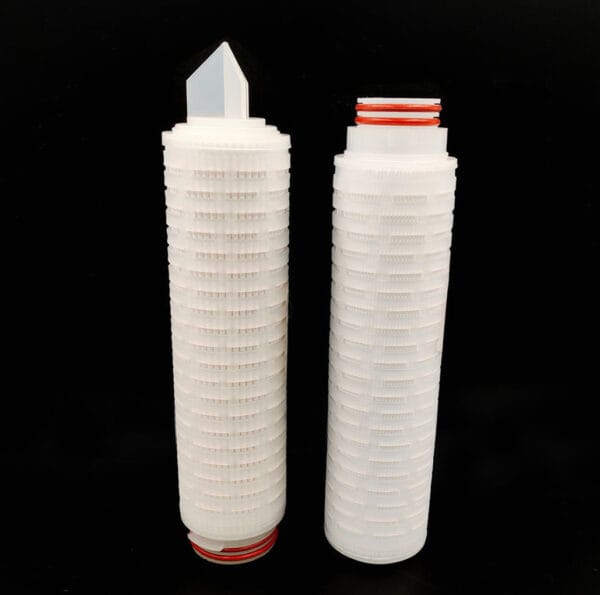

5 Micron PP Pleated Filter Cartridge
5 Micron PP Pleated Filter Cartridge
价格范围：$2.00 至 $19.00
The 5 Micron PP Pleated Filter Cartridge is designed for reliable removal of medium-sized particles in industrial liquid filtration systems. Manufactured from high-quality polypropylene materials, the cartridge provides stable 5 micron filtration performance, high dirt holding capacity, and low pressure drop.
| Filter Media | PP (Polypropylene) |
|---|---|
| Micron | 5um |
| length | 10 inch, 20 inch, 30 inch, 40 inch |
| End Cap | DOE, SEO, 222/Fin, 222/Flat, 226/Fin, 226/Flat |
The 5 Micron PP Pleated Filter Cartridge is engineered to deliver efficient and consistent filtration for applications requiring reliable removal of fine suspended solids and particulate contaminants. Utilizing advanced polypropylene pleated media, the cartridge combines high filtration efficiency with excellent flow characteristics.
The pleated configuration provides a large effective filtration surface area, enabling the cartridge to process higher liquid volumes while maintaining low pressure loss. This design improves contaminant retention capacity and reduces the frequency of cartridge replacement.
Manufactured from thermally bonded polypropylene materials, the cartridge offers broad chemical compatibility and stable structural integrity during operation. The all-polypropylene construction also minimizes the risk of media contamination and supports use in various industrial liquid systems.
A 5 micron filtration rating makes this cartridge suitable for applications such as pre-filtration, process liquid clarification, protection of downstream membrane systems, and industrial water treatment, where controlled particle removal is essential for maintaining system performance.
The cartridge is available in standard lengths and configurations for compatibility with most industrial filter housings.
| PF | -PP | -0500 | -10 | -P | -H | -2 | -S |
| Model | Membrane | Micron | Length | Inner Core | Outer Surface | End Cap | O-Ring |
| PF | PP (Polypropylene) |
| 05 = 5 Inch 10 = 10 Inch 20 = 20 Inch 30 = 30 Inch 40 = 40 Inch | P = PP | H = PP Support M = Mesh Surface S = SUS304 U = SUS316 | 0 = DOE 1 = SOE 2 = 222 Flat 3 = 222 Fin 4 = 226 Flat 5 = 226 Fin | S = Silicone F = FKM (Viton) E = EPDM N = NBR T = PTFE |
1️⃣ Key Features
Accurate 5 Micron Filtration
Provides reliable removal of medium-sized particles, suspended solids, and contaminants from industrial liquids.
Large Effective Filtration Area
Pleated media design increases surface area, improving flow capacity and dirt holding performance.
High Flow Rate Performance
Optimized pleat structure allows stable liquid flow while maintaining low pressure drop.
Durable Polypropylene Construction
Manufactured from high-quality polypropylene materials for excellent chemical compatibility and mechanical stability.
Extended Service Life
Enhanced contaminant retention capacity reduces cartridge replacement frequency and maintenance costs.
Wide Industrial Application Range
Suitable for water treatment, food processing, chemical filtration, and industrial liquid systems.
2️⃣ 5 um PP Pleated Filter Cartridge Technical Specification
| Parameter | Specification |
|---|---|
| Product Category | PP Pleated Filter Cartridge |
| Membrane Material | Polypropylene (PP) |
| Micron Rating | 5um |
| Length | 10″, 20″, 30″, 40″ |
| Core | Polypropylene, SS304, SS316 |
| Outer Diameter | 68 mm |
| Inner Diameter | 28 mm |
| End Caps | DOE, 222/Fin, 222/Flat, 226/Fin, 226/Flat |
| O-ring | Silicone, FKM (Viton), EPDM, NBR, PTFE |
| Max Operating Temperature | 80°C |
| Max Differential Pressure | 4.0 bar |
| Construction | Thermal Bonded Polypropylene |
| Certificates | FDA 21 CFR 177.1520 Compliant |
Download Product Brochure
3️⃣5 um PP Pleated Filter Cartridge Typical Applications
| Industry | Filtration Application | Purpose |
|---|---|---|
| Water Treatment | Pre-filtration systems | Remove suspended particles before fine filtration |
| Food & Beverage | Process liquid clarification | Improve product cleanliness and quality |
| Chemical Industry | Industrial liquid filtration | Protect downstream equipment |
| Manufacturing | Cooling water filtration | Reduce particulate contamination |
| Electronics | Process water filtration | Maintain stable production conditions |
4️⃣ Quality Control & Certifications
FDA Compliant Polypropylene Materials
The polypropylene components comply with relevant FDA food contact regulations, making the cartridge suitable for food, beverage, and potable water applications.
Strict Production Quality Control
Each cartridge is manufactured under controlled production standards to ensure dimensional consistency and stable filtration performance.
Filtration Performance Testing
Finished products are tested for pressure resistance, filtration efficiency, and structural integrity before shipment.
Clean Manufacturing Environment
The cartridges are produced in clean production conditions to minimize contamination and maintain product reliability for industrial filtration systems.
5️⃣ Advantages of 5 μm Pleated Filter Cartridge
- Reliable 5 micron particle removal performance
- Large filtration area with high dirt holding capacity
- Low pressure drop and stable flow characteristics
- Excellent chemical compatibility with polypropylene construction
- Easy installation in standard industrial housings
- Cost-effective filtration solution for industrial liquid systems
6️⃣ FAQ
What is a 5 micron PP pleated filter cartridge used for?
It is used to remove suspended particles and contaminants from liquids in industrial filtration systems.
What industries commonly use 5 micron PP filters?
These filters are widely used in water treatment, food and beverage processing, chemical filtration, and industrial manufacturing.
What are the advantages of pleated filter cartridges?
Pleated filters provide larger filtration area, higher flow rates, lower pressure drop, and longer service life compared with conventional depth filters.
Is the cartridge compatible with standard housings?
Yes, the cartridge is designed in standard sizes for compatibility with most industrial filter housings.
Can the cartridge be used for food and beverage filtration?
Yes, the polypropylene materials comply with FDA requirements for food contact applications.
