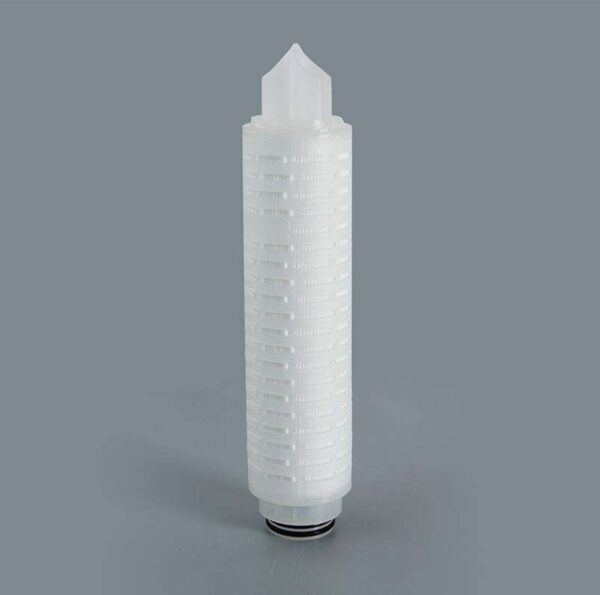

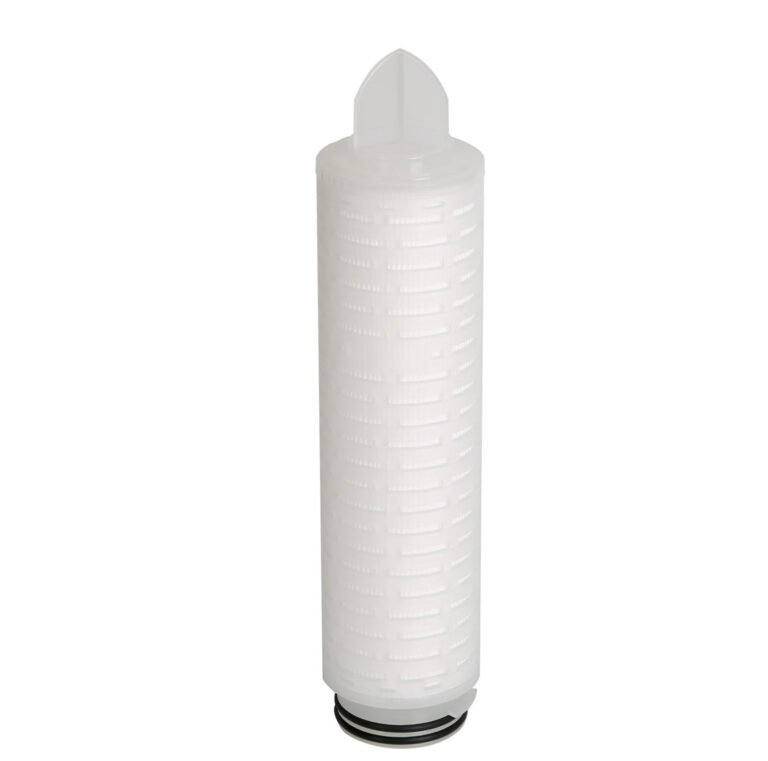

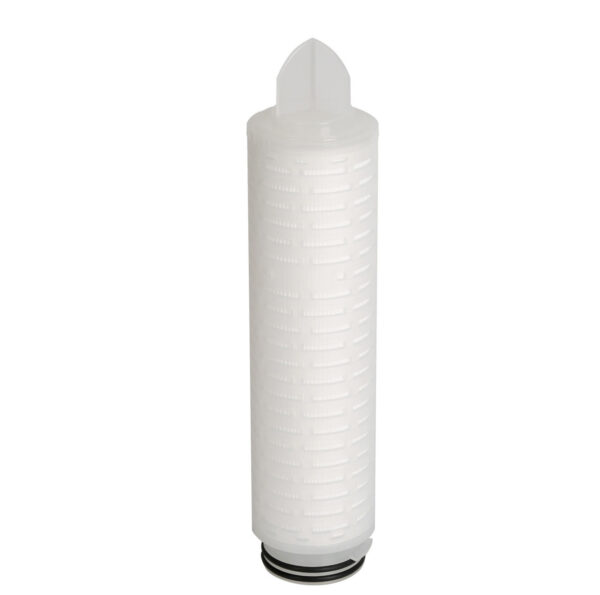

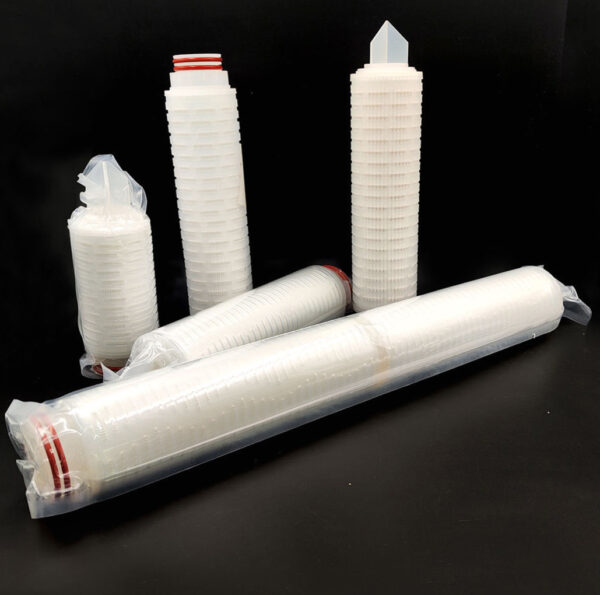

High Efficiency PES Membrane Filter Cartridge
评分为 4.3（共 5）
High Efficiency PES Membrane Filter Cartridge
价格范围：$9.00 至 $69.00
The High Efficiency PES Membrane Filter Cartridge is designed for precision liquid filtration where absolute-rated performance up to 99.9% efficiency is required. Featuring a hydrophilic PES membrane, this cartridge ensures excellent flow characteristics, high throughput, and reliable particle removal for critical applications.
| Filter Media | PES Membrane |
|---|---|
| Micron | 0.1um, 0.22um, 0.45um, 0.65um, 1um, 5um, 10um |
| length | 10 inch, 20 inch, 30 inch, 40 inch |
| End Cap | DOE, 222/Fin, 222/Flat, 226/Fin, 226/Flat |
The High Efficiency PES Membrane Filter Cartridge is engineered for applications that demand high filtration accuracy, high flow performance, and low protein binding characteristics. The hydrophilic PES membrane allows direct filtration of aqueous solutions without pre-wetting, ensuring convenient operation and stable performance.
This cartridge delivers absolute filtration efficiency up to 99.9%, effectively removing fine particles, microorganisms, and colloidal contaminants from liquids. The membrane structure provides a uniform pore distribution, enabling consistent and predictable filtration results.
The pleated design maximizes filtration surface area, allowing higher flow rates while maintaining low pressure drop. This results in longer service life and reduced operational costs, especially in continuous filtration systems.
The PES membrane is particularly suitable for pharmaceutical and bioprocess applications, as it offers low extractables and low protein adsorption, helping preserve the integrity of sensitive fluids.
With a wide range of micron ratings (typically 0.1–0.65 μm) and standard cartridge sizes, this filter is compatible with most industrial and sanitary filter housings.
| PF | -PES | -0100 | -10 | -P | -H | -1 | -S |
| Model | Membrane | Micron | Length | Inner Core | Outer Surface | End Cap | O-Ring |
| PF | PES | 0010 = 0.10 μm 0020 = 0.20 μm 0045 = 0.45 μm 0100 = 1.0 μm 0500 = 5.0 μm 1000 = 10 μm | 05 = 5 Inch 10 = 10 Inch 20 = 20 Inch 30 = 30 Inch 40 = 40 Inch | P = PP | H = PP Support M = Mesh Surface S = SUS304 U = SUS316 | 0 = DOE 1 = 222 Flat 2 = 222 Fin 3 = 226 Flat 4 = 226 Fin | S = Silicone F = FKM (Viton) E = EPDM N = NBR T = PTFE |
1️⃣ Key Features of PES Filter Cartridge
Absolute Filtration Efficiency up to 99.9%
The PES membrane provides true absolute-rated filtration, achieving up to 99.9% particle removal efficiency, ensuring high reliability in critical filtration processes.
Hydrophilic Membrane Performance
Naturally hydrophilic PES material allows efficient filtration of aqueous solutions without pre-wetting, simplifying system operation.
Low Protein Binding
Designed for sensitive applications, the PES membrane minimizes protein adsorption, preserving valuable biological components.
High Flow Rate & Low Pressure Drop
The optimized pleated structure ensures high throughput while maintaining stable pressure conditions.
Uniform Pore Structure
The membrane features consistent pore distribution, providing predictable filtration accuracy and repeatable performance.
Wide Application Compatibility
Suitable for pharmaceutical, food & beverage, laboratory, and industrial liquid filtration systems.
2️⃣ PES Pleated Filter Cartridge Specification
| Parameter | Specification |
|---|---|
| Membrane Material | PES |
| Micron Rating | 0.1um, 0.22um, 0.45um, 0.65um, 1um, 5um, 10um, 20um |
| Length | 10″, 20″, 30″, 40″ |
| Core Material | Polypropylene, SS304, SS316 |
| Outer Diameter | 68 mm |
| Inner Diameter | 28 mm |
| End Caps | DOE, 222/Fin, 222/Flat, 226/Fin, 226/Flat |
| O-ring | Silicone, FKM (Viton), EPDM, NBR, PTFE |
| Max Operating Temperature | 80°C |
| Max Differential Pressure | 4.0 bar |
| Replacement Differential Pressure | 2.4 bar |
| Certificates | FDA 21 CFR 177.1520 Compliant |
Download Product Brochure
3️⃣PES Membrane Filter Cartridge Typical Applications
| Industry | Filtration Application | Purpose |
|---|---|---|
| Pharmaceutical | Sterile liquid filtration | Remove bacteria and fine particles |
| Biopharmaceutical | Protein and buffer filtration | Maintain product integrity |
| Food & Beverage | Beverage and water filtration | Ensure product safety and clarity |
| Laboratory | Analytical liquid filtration | Achieve precise and reliable results |
| Electronics | High purity water filtration | Protect sensitive manufacturing processes |
4️⃣Certifications & Compliance
FDA Compliance
The materials used in the PES filter cartridge comply with FDA regulations for food contact applications, making it suitable for food, beverage, and pharmaceutical processes.
International Quality Standards
Manufactured under strict quality control systems aligned with international standards to ensure consistent product quality and traceability.
Integrity Testing
Each filter cartridge can undergo integrity testing (such as bubble point testing) to verify membrane performance and filtration accuracy.
Clean Manufacturing Environment
Produced in controlled environments to minimize contamination and ensure suitability for high purity and sterile applications.
5️⃣Advantages of High Efficiency PES Filter Cartridges
- Absolute filtration efficiency up to 99.9%
- Hydrophilic membrane for easy wetting and operation
- Low protein binding for biopharmaceutical applications
- High flow rate with low pressure drop
- Reliable and repeatable filtration performance
- Suitable for high purity and sterile filtration systems
6️⃣FAQ – PES Filter Cartridge
What does 99.9% filtration efficiency mean?
It means the filter can remove at least 99.9% of particles at the specified micron rating, ensuring highly reliable filtration performance.
What makes PES membrane filters unique?
PES membranes offer hydrophilicity, low protein binding, and high flow rates, making them ideal for pharmaceutical and biological applications.
What micron ratings are available?
Common ratings range from 0.1 μm to 0.65 μm, suitable for fine and sterile filtration.
Can this filter be used for sterile filtration?
Yes, PES filters are widely used in sterilizing-grade filtration for pharmaceutical and bioprocess applications.
Is the filter suitable for food and beverage use?
Yes, it complies with FDA standards, making it suitable for food and beverage filtration systems.
