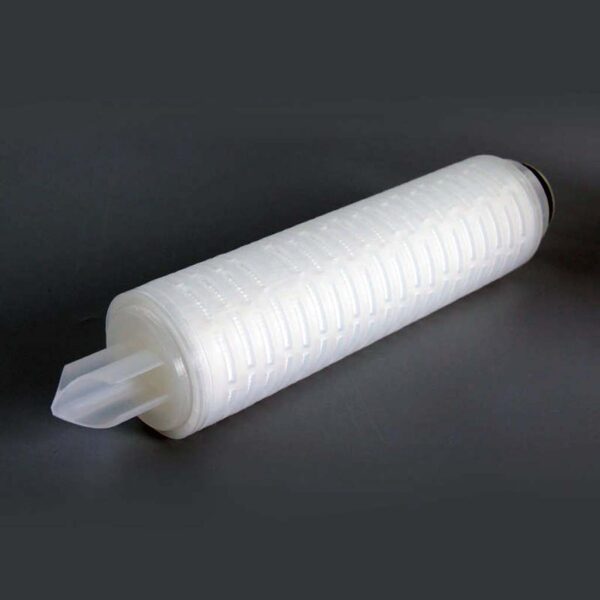

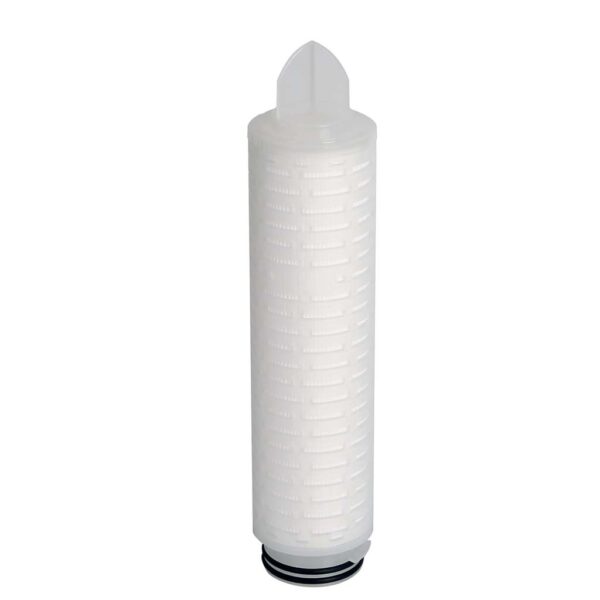

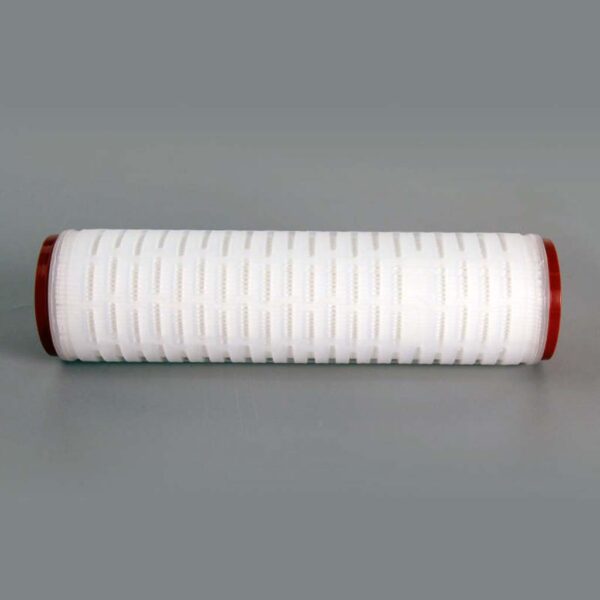

Pleated Liquid Filter Cartridges
评分为 4.3（共 5）
Pleated Liquid Filter Cartridges
价格范围：$2.00 至 $40.00
Pleated liquid filter cartridges are high-efficiency filtration elements designed for removing particles, sediments, and contaminants from liquids in industrial filtration systems. Manufactured with high-quality filtration media such as Polypropylene, PES, PTFE, PVDF, or Nylon membranes, pleated liquid filter cartridges allowing higher flow rates, lower pressure drop, and longer service life
| Filter Media | PP, Stainless Steel, Glass Fiber |
|---|---|
| Micron | 0.22um, 0.45um, 1um, 5um, 10um, 20um, 50um |
| length | 10 inch, 20 inch, 30 inch, 40 inch, 60 inch, 70 inch |
| End Cap | DOE, 222/Fin, 222/Flat, 226/Fin, 226/Flat |
Pleated liquid filter cartridges are widely used in industrial liquid filtration systems due to their high filtration efficiency, large filtration area, and stable filtration performance. The pleated structure increases the effective filtration surface area several times compared with traditional cylindrical depth filter cartridges, enabling improved filtration efficiency and reduced pressure drop.
These cartridges are manufactured using advanced filtration media combined with strong support layers and durable structural components. Depending on filtration requirements, different membrane materials such as polypropylene (PP), polyethersulfone (PES), polytetrafluoroethylene (PTFE), polyvinylidene fluoride (PVDF), and nylon can be used to achieve specific filtration performance.
Pleated liquid filter cartridges are capable of removing suspended particles, colloids, microorganisms, and fine contaminants from liquids. This helps improve product quality and protects downstream equipment in industrial processes.
They are available in standard sizes such as 10 inch, 20 inch, 30 inch, and 40 inch, and can be manufactured with various end cap configurations including DOE, 222, and 226 connections to fit most standard filter housings.
Because of their large filtration area and high dirt holding capacity, pleated liquid filter cartridges offer longer service life and reduced maintenance costs, making them an ideal choice for many industrial filtration systems including water treatment, food and beverage processing, pharmaceuticals, chemicals, and electronics manufacturing.
| PF | -ME | -0100 | -10 | -P | -H | -1 | -S |
| Model | Media | Micron | Length | Inner Core | Outer Surface | End Cap | O-Ring |
| PF | PTFE = Polytetrafluoroethylene GF = Glass Fiber | 0010 = 0.10 μm 0020 = 0.20 μm 0045 = 0.45 μm 0100 = 1.0 μm 0500 = 5.0 μm 1000 = 10 μm | 05 = 5 Inch 10 = 10 Inch 20 = 20 Inch 30 = 30 Inch 40 = 40 Inch | P = PP S = SUS304 U = SUS316 | H = PP Support M = Mesh Surface S = SUS304 U = SUS316 | 0 = DOE 1 = 222 Flat 2 = 222 Fin 3 = 226 Flat 4 = 226 Fin | S = Silicone F = FKM (Viton) E = EPDM N = NBR T = PTFE |
3️⃣ Key Features
Large Filtration Surface Area
The pleated design significantly increases filtration area, enabling higher filtration capacity.
High Flow Rate
Pleated cartridges allow high liquid flow rates while maintaining low pressure drop.
Excellent Chemical Compatibility
Various filtration media options provide compatibility with a wide range of liquids and chemicals.
Low Pressure Drop
Optimized pleat geometry reduces system pressure loss and improves filtration efficiency.
Long Service Life
High dirt holding capacity extends filter replacement intervals.
Wide Range of Filtration Ratings
Available in multiple micron ratings to meet different filtration requirements.
4️⃣ Technical Specifications
| Parameter | Specification |
|---|---|
| Filter Type | Pleated Liquid Filter Cartridge |
| Filter Media | PP / PES / PTFE / PVDF / Nylon |
| Support Layer | Polypropylene / Polyester |
| Core / Cage | Polypropylene |
| End Caps | Polypropylene |
| Micron Rating | 0.1 – 50 μm |
| Length | 10″, 20″, 30″, 40″ |
| Outer Diameter | 68 mm |
| Inner Diameter | 28 mm |
| Maximum Operating Temperature | 80°C |
| Maximum Differential Pressure | 4.0 bar |
5️⃣ Applications of Pleated Liquid Filter Cartridges
| Industry | Filtration Application | Purpose |
|---|---|---|
| Water Treatment | Industrial water filtration, RO pre-filtration | Remove suspended solids and particles |
| Food & Beverage | Beverage filtration, bottled water filtration | Improve product clarity and safety |
| Pharmaceutical | Process liquid filtration | Ensure high purity and sterile production |
| Chemical Industry | Chemical solution filtration | Protect downstream equipment |
| Electronics Industry | Ultra-pure water filtration | Remove fine particles from process water |
| Power Plants | Cooling water filtration | Prevent system contamination |
6️⃣ Product Structure & Materials
| Component | Material |
|---|---|
| Filter Media | PP / PES / PTFE / PVDF / Nylon membrane |
| Support Layer | Polypropylene / Polyester |
| Inner Core | Polypropylene |
| Outer Cage | Polypropylene |
| End Caps | Polypropylene |
| Sealing Method | Thermal bonding without adhesives |
This all-polypropylene structural design ensures strong mechanical strength and excellent chemical compatibility.
7️⃣ Advantages of Pleated Liquid Filter Cartridges
High Filtration Efficiency
Pleated liquid filters provide stable and reliable particle removal performance across different filtration processes.
Large Dirt Holding Capacity
The pleated structure increases filtration area and improves contaminant holding capacity.
Cost-Effective Filtration Solution
Compared with some membrane filtration systems, pleated liquid cartridges provide economical and efficient filtration.
Easy Installation and Replacement
Standard sizes allow easy installation in most industrial filter housings.
Suitable for Various Industrial Liquids
Pleated liquid filters are compatible with water, beverages, chemicals, pharmaceutical liquids, and other industrial fluids.
8️⃣ FAQ – Pleated Liquid Filter Cartridges
What is a pleated liquid filter cartridge?
A pleated liquid filter cartridge is a filtration element designed to remove particles and contaminants from liquids using a pleated filtration media structure.
What filtration media are available?
Common filtration media include polypropylene, PES, PTFE, PVDF, and nylon membranes depending on filtration requirements.
What micron ratings are available?
Typical micron ratings range from 0.1 micron to 50 micron for liquid filtration applications.
Where are pleated liquid filters used?
They are widely used in water treatment, beverage production, pharmaceutical manufacturing, and chemical processing.
What are the advantages of pleated filters?
Pleated filters provide higher filtration area, lower pressure drop, and longer service life compared with traditional depth filter cartridges.
