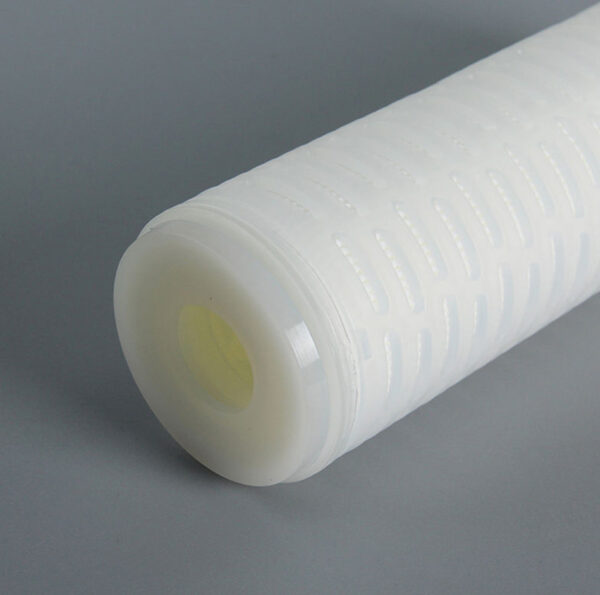

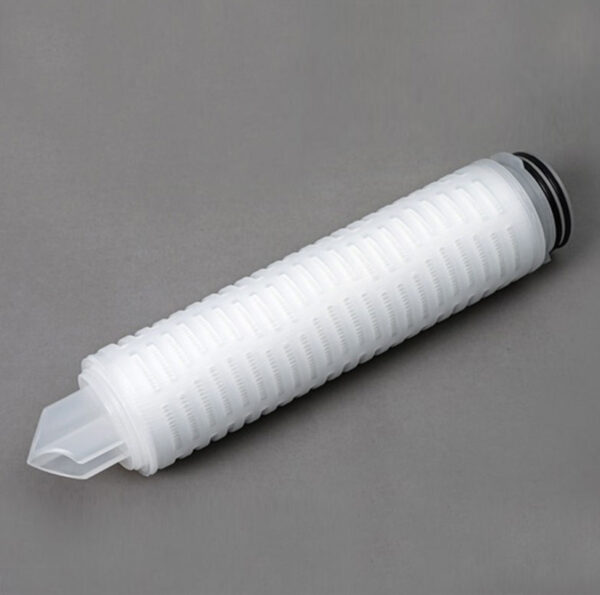

Chemical Resistant PVDF Filter Cartridge for Aggressive Fluids
评分为 4.3（共 5）
Chemical Resistant PVDF Filter Cartridge for Aggressive Fluids
价格范围：$11.00 至 $89.00
Our PVDF Filter Cartridge is specially designed for highly corrosive and aggressive liquid applications, providing excellent chemical compatibility and long-lasting performance. Ideal for chemical processing, pharmaceuticals, and industrial fluid systems, it ensures reliable filtration without compromising flow rate or structural integrity.
| Filter Media | PVDF Membrane |
|---|---|
| Micron | 0.1um, 0.22um, 0.45um, 0.65um, 1um, 5um, 10um |
| length | 10 inch, 20 inch, 30 inch, 40 inch, 60 inch, 70 inch |
| End Cap | DOE, 222/Fin, 222/Flat, 226/Fin, 226/Flat |
The Chemical Resistant PVDF Filter Cartridge offers high chemical resistance and mechanical durability, making it perfect for handling aggressive acids, solvents, and other challenging fluids. Constructed with a PVDF pleated membrane, this cartridge ensures a large filtration area, maintaining high flow rates and low pressure drop even in demanding chemical processes.
With superior resistance to oxidizing agents, solvents, and extreme pH conditions, this PVDF filter cartridge is suitable for applications in chemical production, pharmaceutical manufacturing, and industrial fluid treatment. Its robust pleated design extends operational life and reduces maintenance downtime.

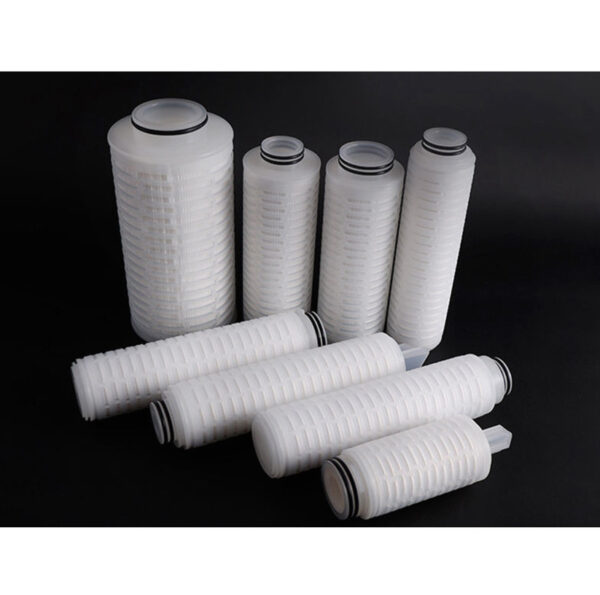

Available in multiple sizes and end cap options, this filter can be easily integrated into existing filtration systems, providing a reliable solution for critical fluid purification.
| PF | -PVDF | -0100 | -10 | -P | -H | -1 | -S |
| Model | Membrane | Micron | Length | Inner Core | Outer Surface | End Cap | O-Ring |
| PF | PVDF | 0010 = 0.10 μm 0020 = 0.20 μm 0045 = 0.45 μm 0100 = 1.0 μm 0500 = 5.0 μm 1000 = 10 μm | 05 = 5 Inch 10 = 10 Inch 20 = 20 Inch 30 = 30 Inch 40 = 40 Inch | P = PP | H = PP Support M = Mesh Surface V = PVDF S = SUS304 U = SUS316 | 0 = DOE 1 = 222 Flat 2 = 222 Fin 3 = 226 Flat 4 = 226 Fin | S = Silicone F = FKM (Viton) E = EPDM N = NBR T = PTFE |
1️⃣ Key Features
High Chemical Resistance
PVDF membrane and support layers resist corrosion and degradation from strong acids, alkalis, and organic solvents, ensuring long service life in aggressive chemical environments.
Large Surface Area
The pleated design maximizes effective filtration area, enabling high flow rates while maintaining low pressure drop.
Wide Micron Range
Available in 0.1 μm to 10 μm, providing precise filtration for fine particles, colloids, and precipitates.
Durable Construction
PVDF filter media, combined with a reinforced support structure, delivers mechanical strength under high differential pressure.
Versatile End Cap Options
Available with standard polypropylene or stainless steel end caps, compatible with most industrial and laboratory housings.
Low Extractables
Engineered to minimize leachables and contamination, protecting sensitive chemical and pharmaceutical processes.
2️⃣ PVDF Pleated Filter Cartridge Technical Specifications
| Parameter | Specification |
|---|---|
| Membrane Material | PVDF |
| Micron Rating | 0.1um, 0.22um, 0.45um, 0.65um, 1um, 5um, 10um, 20um |
| Length | 10″, 20″, 30″, 40″ |
| Core and Structure | Polypropylene, PVDF, SS304, SS316 |
| Outer Diameter | 68 mm |
| Inner Diameter | 28 mm |
| End Caps | DOE, 222/Fin, 222/Flat, 226/Fin, 226/Flat |
| O-ring | Silicone, FKM (Viton), EPDM, NBR, PVDF |
| Max Operating Temperature | 80°C |
| Max Differential Pressure | 4.0 bar |
| Replacement Differential Pressure | 2.4 bar |
| Certificates | FDA 21 CFR 177.1520 Compliant |
Download Product Brochure
3️⃣Applications of PVDF Filter Cartridges
| Industry | Filtration Application | Purpose |
|---|---|---|
| Chemical Processing | Filtration of acids, alkalis, and solvents | Protect downstream equipment and ensure product purity |
| Pharmaceuticals | Process liquid filtration | Remove fine particles and contaminants from chemical solutions |
| Biopharmaceutical | Buffer and media filtration | Ensure contamination-free fluids in aggressive chemical environments |
| Food & Beverage | Specialty processing chemicals | Maintain purity and prevent process contamination |
| Industrial Manufacturing | Aggressive fluid handling | Filtration of corrosive process liquids |
| Laboratory | Chemical sample preparation | Provide accurate filtration of aggressive fluids |
4️⃣Product Structure & Materials
The Chemical Resistant PVDF Filter Cartridge features a pleated PVDF membrane that provides high surface area for efficient filtration and high flow performance. The membrane is supported by a PVDF or polypropylene core, which ensures structural integrity under high differential pressures and aggressive chemical exposure.
The outer cage and support layers are designed to protect the membrane while maintaining chemical compatibility. End caps are available in polypropylene for standard applications or stainless steel for harsh chemical environments, allowing compatibility with most industrial and laboratory filter housings.
This fully integrated design guarantees mechanical stability, low pressure drop, and consistent particle retention, even under demanding chemical processing conditions.
5️⃣Advantages of Chemical Resistant PVDF Filter Cartridges
- Exceptional Chemical Compatibility – Suitable for acids, alkalis, and solvents.
- High Flow Capacity – Pleated membrane ensures large surface area and low pressure drop.
- Precision Filtration – Micron ratings from 0.1 μm to 10 μm for fine particle removal.
- Durable & Reliable – Strong core and cage prevent deformation in harsh chemicals.
- Flexible Installation – Multiple end cap options for easy integration into existing housings.
- Low Contamination Risk – Minimal extractables protect sensitive processes.
6️⃣FAQ – PVDF Filter Cartridge
What makes PVDF filters suitable for aggressive chemicals?
PVDF membranes and supports resist corrosion, swelling, and degradation from acids, bases, and solvents, maintaining filtration performance.
What micron ratings are available?
PVDF cartridges are available from 0.1 μm to 10 μm, allowing fine to coarse filtration.
Can these cartridges handle high flow rates?
Yes, the pleated design provides high surface area, ensuring efficient filtration even at high flow rates.
Are they compatible with standard housings?
Yes, they are designed with polypropylene or stainless steel end caps, compatible with most industrial and laboratory filter housings.
What applications are best for PVDF high chemical resistance cartridges?
Ideal for chemical processing, pharmaceuticals, biopharmaceuticals, industrial fluids, and laboratory use with aggressive fluids.
