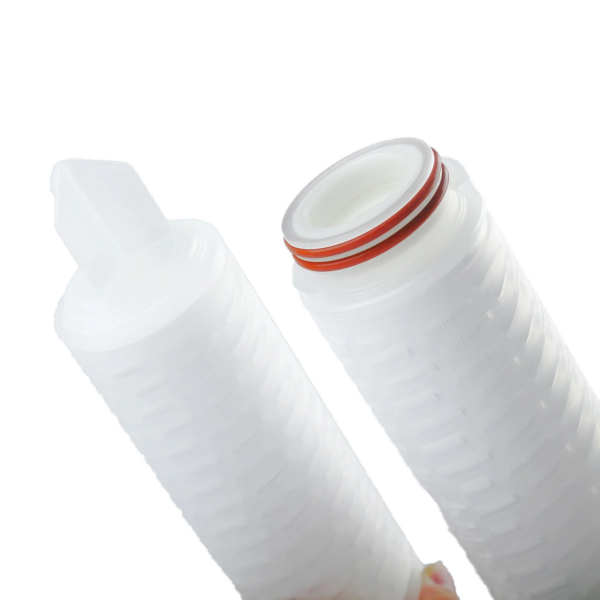

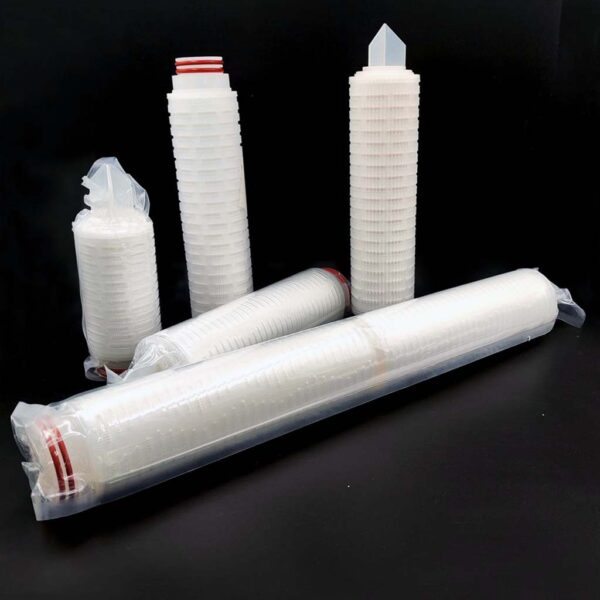

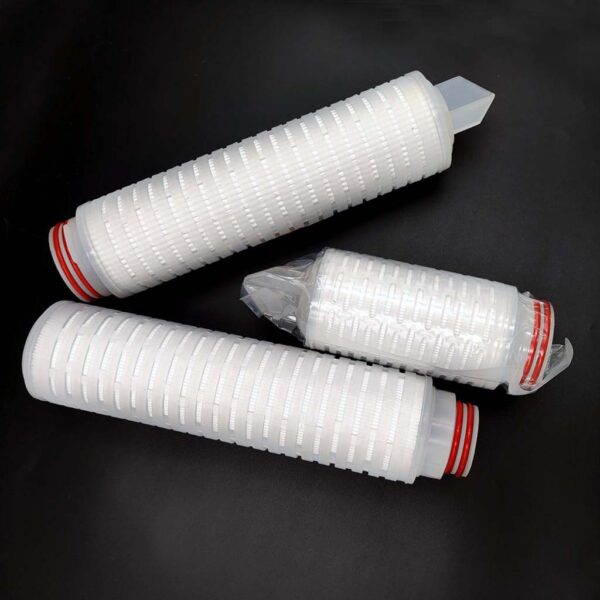

Pleated Style Gas Filter Cartridges
评分为 4.3（共 5）
Pleated Style Gas Filter Cartridges
价格范围：$13.00 至 $90.00
Pleated style gas filter cartridges are designed for efficient removal of particles, aerosols, and contaminants from compressed air and industrial gases. Manufactured with advanced filtration media such as PTFE membrane, polypropylene, or glass fiber, these cartridges provide reliable filtration performance for various gas filtration applications. They are widely used in compressed air systems, gas purification, pharmaceutical production, food processing, and chemical industries.
| Filter Media | PP, Stainless Steel, Glass Fiber |
|---|---|
| Micron | 0.22um, 0.45um, 1um, 5um, 10um, 20um, 50um |
| length | 10 inch, 20 inch, 30 inch, 40 inch, 60 inch, 70 inch |
| End Cap | DOE, 222/Fin, 222/Flat, 226/Fin, 226/Flat |
Pleated style gas filter cartridges are high-performance filtration elements specifically designed for industrial gas and compressed air filtration systems. The pleated design increases the effective filtration area compared with traditional cylindrical filter elements, resulting in improved filtration efficiency and reduced pressure drop.
These cartridges are manufactured using high-quality filtration media combined with durable support layers and structural components. The pleated structure allows a large filtration surface within a compact filter element, enabling higher gas flow rates and longer service life.
Pleated gas filter cartridges are capable of removing solid particles, dust, oil aerosols, and other contaminants from gas streams. This helps protect downstream equipment such as compressors, valves, instrumentation, and production systems.
Depending on application requirements, different filtration media such as PTFE membrane, polypropylene, glass fiber, or stainless steel mesh can be used to achieve specific filtration efficiency and chemical compatibility.
These cartridges are compatible with most standard industrial gas filtration housings and are available in multiple sizes and configurations to meet different system requirements.
| PF | -ME | -0100 | -10 | -P | -H | -1 | -S |
| Model | Media | Micron | Length | Inner Core | Outer Surface | End Cap | O-Ring |
| PF | PTFE = Polytetrafluoroethylene GF = Glass Fiber | 0010 = 0.10 μm 0020 = 0.20 μm 0045 = 0.45 μm 0100 = 1.0 μm 0500 = 5.0 μm 1000 = 10 μm | 05 = 5 Inch 10 = 10 Inch 20 = 20 Inch 30 = 30 Inch 40 = 40 Inch | P = PP S = SUS304 U = SUS316 | H = PP Support M = Mesh Surface S = SUS304 U = SUS316 | 0 = DOE 1 = 222 Flat 2 = 222 Fin 3 = 226 Flat 4 = 226 Fin | S = Silicone F = FKM (Viton) E = EPDM N = NBR T = PTFE |
3️⃣ Key Features
Large Filtration Area
The pleated structure greatly increases filtration surface area, allowing high gas flow rates.
Low Pressure Drop
Optimized pleat geometry ensures efficient filtration while minimizing pressure loss.
High Filtration Efficiency
Advanced filtration media effectively remove fine particles and aerosols from gas streams.
Long Service Life
Large filtration area and high dirt holding capacity extend filter lifespan.
Excellent Chemical Compatibility
Different filtration media options allow compatibility with various industrial gases.
Robust Structural Design
Durable construction ensures reliable operation under demanding industrial conditions.
4️⃣ Technical Specifications
| Parameter | Specification |
|---|---|
| Filter Type | Pleated Gas Filter Cartridge |
| Filter Media | PTFE / Polypropylene / Glass Fiber |
| Support Layer | Polypropylene or Polyester |
| Core / Cage | Polypropylene or Stainless Steel |
| Filtration Rating | 0.01 – 10 μm |
| Length | 10″, 20″, 30″, 40″ |
| Outer Diameter | 68 mm |
| Inner Diameter | 28 mm |
| Maximum Operating Temperature | 80°C – 120°C (depending on media) |
| Maximum Differential Pressure | 4.0 bar |
5️⃣ Applications of Pleated Style Gas Filter Cartridges
| Industry | Filtration Application | Purpose |
|---|---|---|
| Compressed Air Systems | Compressed air filtration | Remove dust, particles, and oil aerosols |
| Pharmaceutical Industry | Sterile gas filtration | Protect production processes |
| Food & Beverage | Gas filtration for packaging and processing | Ensure product safety |
| Chemical Industry | Process gas filtration | Remove contaminants from industrial gases |
| Electronics Industry | Clean gas supply | Prevent contamination in sensitive manufacturing |
| Power Plants | Instrument air filtration | Protect control systems and equipment |
6️⃣ Product Structure & Materials
| Component | Material |
|---|---|
| Filter Media | PTFE membrane / Polypropylene / Glass fiber |
| Support Layer | Polypropylene / Polyester |
| Inner Core | Polypropylene / Stainless steel |
| Outer Cage | Polypropylene / Stainless steel |
| End Caps | Polypropylene / Stainless steel |
| Sealing Method | Thermal bonding or mechanical sealing |
7️⃣ Advantages of Pleated Gas Filter Cartridges
Improved Gas Filtration Performance
Pleated gas filters provide higher filtration efficiency compared with traditional cylindrical gas filter elements.
Higher Gas Flow Capacity
Large filtration area allows high gas throughput without significant pressure drop.
Extended Filter Service Life
High dirt holding capacity helps reduce maintenance frequency and operating costs.
Flexible Filtration Media Options
Various filtration media allow customization for different industrial gas filtration requirements.
Reliable Equipment Protection
Effective removal of particles and aerosols protects compressors, pipelines, and downstream equipment.
8️⃣ FAQ – Pleated Style Gas Filter Cartridges
What is a pleated gas filter cartridge?
A pleated gas filter cartridge is a filtration element designed for removing particles and contaminants from industrial gases and compressed air using a pleated filtration structure.
What filtration media are used in gas filter cartridges?
Common media include PTFE membrane, polypropylene, glass fiber, and stainless steel mesh depending on the filtration requirements.
What micron ratings are available?
Typical micron ratings range from 0.01 μm to 10 μm for gas filtration applications.
Where are pleated gas filters used?
They are commonly used in compressed air systems, pharmaceutical manufacturing, food processing, chemical plants, and electronics production.
Why use pleated filters for gas filtration?
Pleated filters provide larger filtration area, higher efficiency, and lower pressure drop compared with traditional filter elements.
